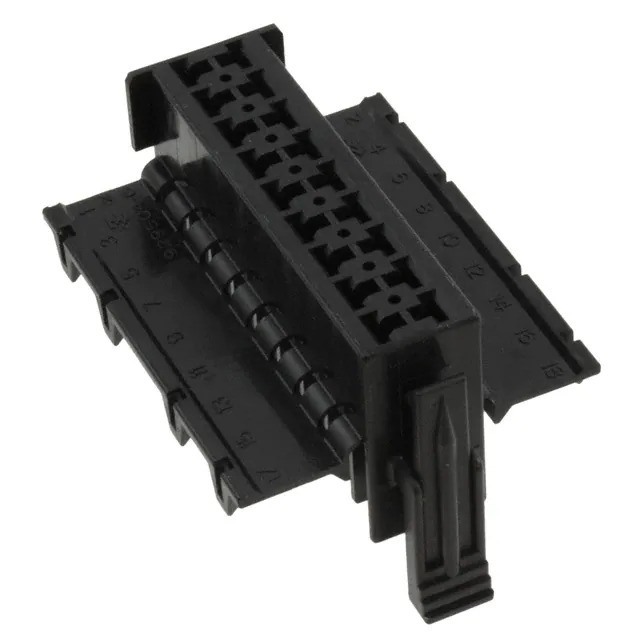

929504-6 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Junior Power Timer
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 18
Pitch 0.197" (5.00mm)
Number of Rows 2
Row Spacing 0.220" (5.60mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type -
Color Black
Features -
Note Contacts Not Included
Base Product Number 929504
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365945-929504-6
Ultra Librarian 3D Model Ultra Librarian 929504-6 CAD Model

Description

The 1365945-929504-6 is a rectangular connector housing from TE Connectivity AMP Connectors.

  • Manufacturer: TE Connectivity AMP Connectors
  • Product: 1365945-929504-6
  • Series: Junior Power Timer
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Positions: 18
  • Rows: 2
  • Operating Temperature: Not Specified (Consult Datasheet)
  • Color: Black
  • Fastening Type: Not Specified
  • Mounting: Free Hanging (In-Line)
  • Status: Active
  • Packaging: Bulk
  • HTSUS Code: 8536.69.8000
  • ECCN: EAR99
  • Contacts Included: No
  • Pitch: 0.197" (5.00mm)
  • Row Spacing: 0.220" (5.60mm)
