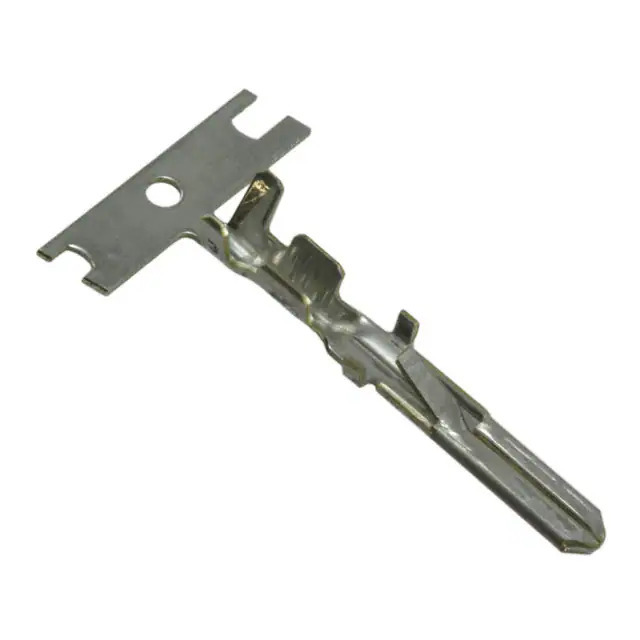

928930-2 TE Connectivity
Same model may have multiple batches, images only for reference.

928930-2

Part No 928930-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC TAB 17-20AWG 0.110 CRIMP / 0.110" (2.79mm) Quick Connect Male 17-20 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Fastin-Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Male
Tab Width 0.110" (2.79mm)
Tab Thickness 0.032" (0.81mm)
Tab Length -
Length - Overall -
Termination Crimp
Wire Gauge 17-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.055" ~ 0.091" (1.40mm ~ 2.31mm)
Base Product Number 928930
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364768-928930-2
Ultra Librarian 3D Model Ultra Librarian 928930-2 CAD Model

Description

The TE Connectivity AMP Connectors Fastin-Faston Quick Disconnect Connector is a reliable and efficient solution for quick connect and disconnect applications in the field of connectors and interconnects.

  • Mounting Type: Free Hanging (In-Line)
  • Tab Width: 0.110" (2.79mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Contact Material: Copper
  • Wire Gauge: 17-20 AWG
  • Contact Finish: Tin
  • Insulation: Non-Insulated
  • Insulation Diameter: 0.055" ~ 0.091" (1.40mm ~ 2.31mm)
