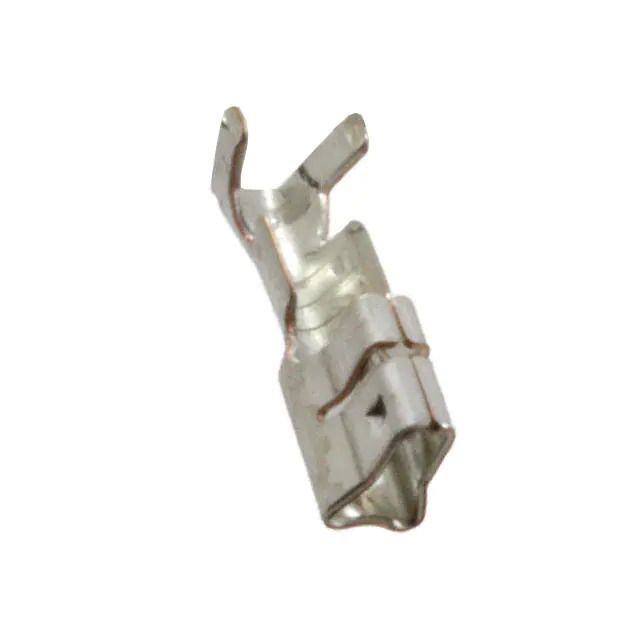

Same model may have multiple batches, images only for reference.

917684-1

Name: 917684-1
Brand: TE Connectivity
SKU: 1362822
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	917684-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN SOCKET 22-28AWG CRIMP TIN / Socket Contact Tin 22-28 AWG Crimp Stamped
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr	TE Connectivity AMP Connectors
Series	-
Package	Tape & Reel (TR)
Product Status	Active
Type	Stamped
Pin or Socket	Socket
Contact Termination	Crimp
Wire Gauge	22-28 AWG
Contact Finish	Tin
Contact Finish Thickness	31.5µin (0.80µm)
Base Product Number	917684
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1362822-917684-1
Ultra Librarian 3D Model	Ultra Librarian 917684-1 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors rectangular connector contacts are designed for use in various electronic applications from TE Connectivity AMP Connectors.

Type: Stamped
Contact Termination: Crimp
Wire Gauge Range: 22-28 AWG
Contact Finish: Tin
Contact Finish Thickness: 31.5µin (0.80µm)
