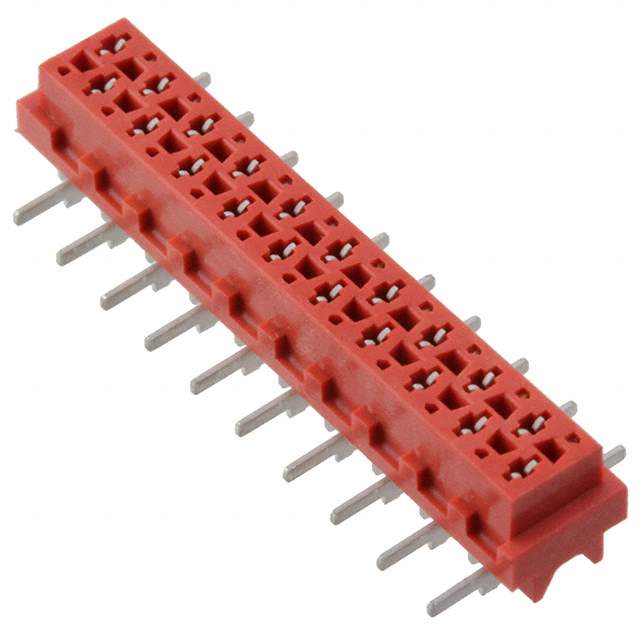

9-188431-0 Real Image
Same model may have multiple batches, images only for reference.

9-188431-0

Part No 9-188431-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 20POS 0.1 TIN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features 20 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Surface Mount, Through Board Tin
Manufacturer TE Connectivity
Series Micro-MaTch
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount, Through Board
Family Name 188431
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -9-188431-0-SI, A118012TR, A118012CT
Quantity per package 1200
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858600-9-188431-0
Ultra Librarian 3D Model Ultra Librarian 9-188431-0 CAD Model

Description

This electronic component with Win Source Part Number 858600-9-188431-0 is a connector from TE Connectivity.

  • Series: Micro-MaTch
  • Type: Bottom Entry Connector
  • Mounting: Surface Mount and Through Board
  • Termination: Tin
  • Package: Reel-TR
  • Family Name: 188431
  • Operating Temperature Range: -40°C to 105°C
  • Supply and Demand: Limited
  • Quantity per Package: 1200
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 25 weeks
  • REACH Status: Vendor Undefined
  • HTSUS: 8536.69.4040
  • Other Part Numbers: -9-188431-0-SI, A118012TR, A118012CT
