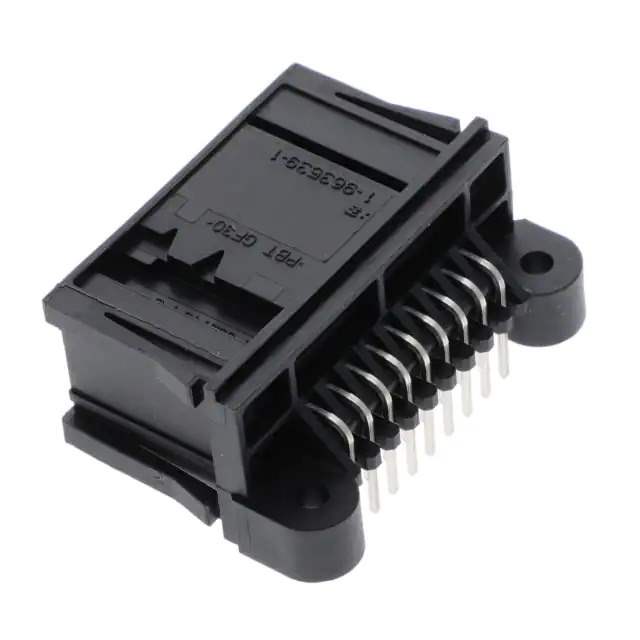

1-963539-1

Name: 1-963539-1
Brand: TE Connectivity
SKU: 854273
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1-963539-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	MQS PIN HEADER 2X9POS / Connector Header Through Hole, Right Angle 18 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity
Series	Micro Quadlok
Package	Tray
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	18
Number of Rows	2
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Lock
Contact Length - Mating	0.264" (6.70mm)
Contact Length - Post	0.110" (2.79mm)
Insulation Height	0.669" (17.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Mounting Flange
Temperature Range - Operating	-40°C ~ 130°C
Insulation Color	Black
Base Product Number	963539
Standard Package	384 pcs
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	854273-1-963539-1
Ultra Librarian 3D Model	Ultra Librarian 1-963539-1 CAD Model

Description

The 854273-1-963539-1 is an 18-position male pin header connector from the Micro Quadlok series by TE Connectivity.

Positions: 18
Series: Micro Quadlok
Mounting: Through-Hole, Right Angle
Feature: Mounting Flange
Pitch: 0.100" (2.54mm)
Contact Length: 0.264" (6.70mm)
Contact Material: Copper Alloy
Contact Finish: Tin
Insulation Material: Polybutylene Terephthalate (PBT), Glass-Filled
Insulation Color: Black
Contact Shape: Square
Temperature Range: -40°C to 130°C
Application: Board to Cable/Wire
Package: Tray (384 pieces)
