Same model may have multiple batches, images only for reference.

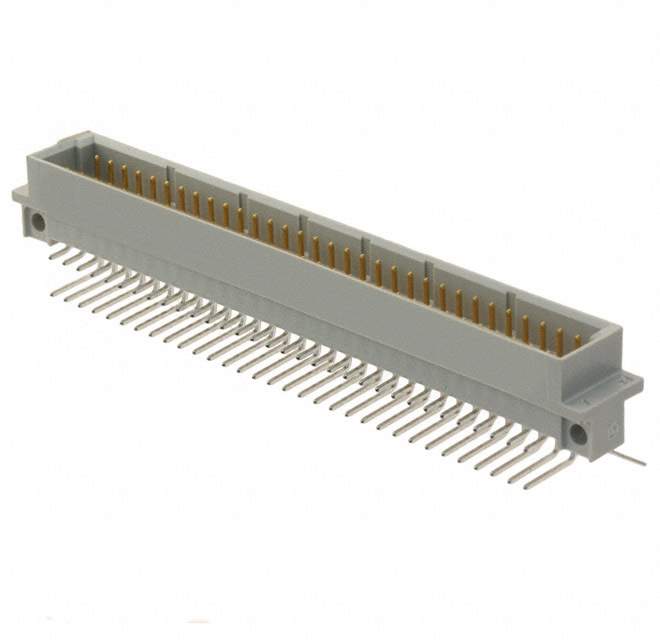

9-1393644-4 Real Image
Same model may have multiple batches, images only for reference.

9-1393644-4

Part No 9-1393644-4
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN PLUG 64POS R/A SOLDER T/H
Datasheet
9-1393644-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Eurocard
Packaging Bulk
Connector Type Plug, Male Pins
Number of Positions 96
Number of Positions Loaded 64
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C
Level, Class 2
Mounting Through Hole, Right Angle
Termination Solder
Contact Finish Gold or Gold-Palladium
Operating Temperature Range -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Win Source Part Number 766464-9-1393644-4
Popularity Medium
Supply and Demand Status Limited
Family Name 1393644
Introduction Date September 03, 2005
ECCN EAR99
Country of Origin Belgium, Netherlands, Poland
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 9-1393644-4 CAD Model

Description

The TE Connectivity AMP Connectors 1393644 series Eurocard plug is a male pin connector manufactured by TE Connectivity AMP Connectors.

  • Positions: 96 (Loaded with 64 pins)
  • Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Flammability Rating: UL94 V-0
  • Pitch: 0.100" (2.54mm)
  • Mounting: Through-hole, Right Angle
  • Contact Finish: Gold or Gold-Palladium
  • Operating Temperature Range: -55°C to 125°C
  • Packaging: Bulk
  • Popularity: Medium (64 pct)
  • ECCN: EAR99
  • Manufacturer Locations: Belgium, Netherlands, Poland
