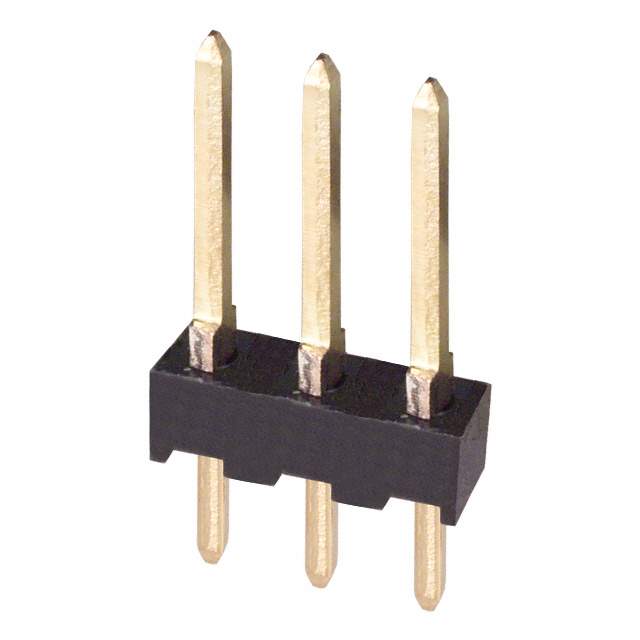

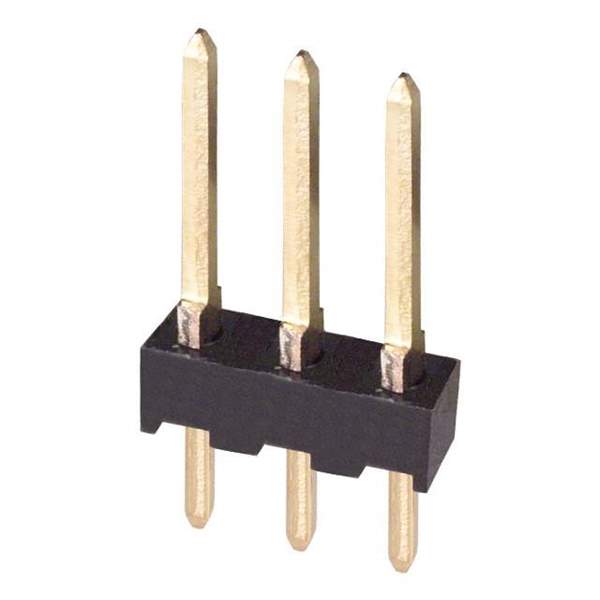

The TE Connectivity AMP Connectors 1030956-87224-3 is a male pin header connector with a pitch of 0.100" (2.54mm). TE Connectivity AMP Connectors.

• Pitch: 0.100" (2.54mm)
• Positions: 3
• Pins: All Male
• Shrouded: No
• Contact Shape: Square
• Contact Material: Phosphor Bronze
• Contact Plating: Gold
• Contact Finish Thickness (Mating): 15.0µin (0.38µm)
• Contact Finish Thickness (Post): Flash
• Insulation Material: Thermoplastic
• Insulation Color: Black
• Connection Style: Board-to-Board or Cable
• Alternative Parts: 70551-0053; , 4-103321-5; , 103185-3; , 104344-1; , 104346-1; , 281696-3; , and 4-103327-587224-3.; .
• Supply and Demand Status: Shortage
