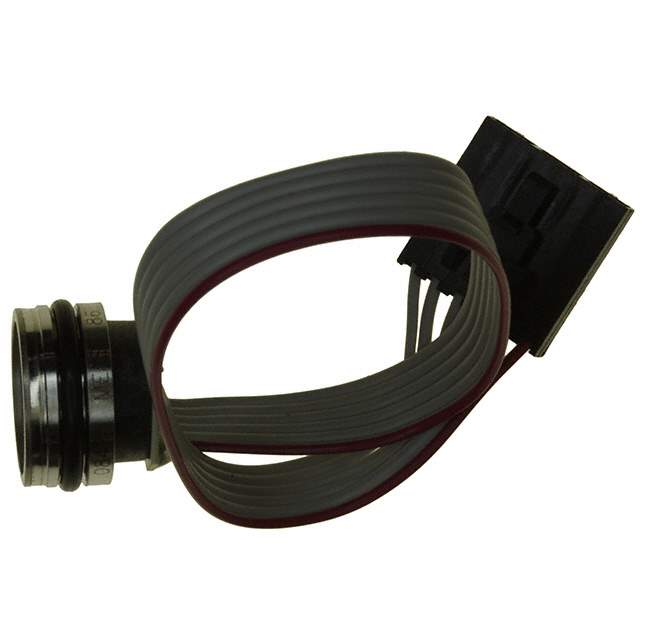

86BSD030PA-3AIC Real Image
Same model may have multiple batches, images only for reference.

86BSD030PA-3AIC

Part No 86BSD030PA-3AIC
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description SENSOR 30PSIA 14BIT / Pressure Sensor 30PSI (206.84kPa) Absolute 14 b Module
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr TE Connectivity Measurement Specialties
Series 86BSD
Package Tube
Product Status Obsolete
Applications Board Mount
Pressure Type Absolute
Operating Pressure 30PSI (206.84kPa)
Output Type I2C, SPI
Output 14 b
Accuracy ±0.25%
Voltage - Supply 3.3V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style Cable with Connector
Maximum Pressure 60PSI (413.69kPa)
Temperature Range - Operating -40°C ~ 125°C
Package / Case Module
Base Product Number 86BS
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1340575-86BSD030PA-3AIC
Ultra Librarian 3D Model Ultra Librarian 86BSD030PA-3AIC CAD Model

Description

The 86BSD030PA-3AIC is an absolute Pressure Sensor Transducer from TE Connectivity Measurement Specialties.

  • Package: Portless
  • Pressure Range: 30PSI (206.84kPa)
  • Operating Voltage: 3.3V
  • Output Type: I2C, SPI
  • Output: 14 b
  • Accuracy: ±0.25%
  • Feature: Temperature Compensated
  • Pressure Maximum: 60PSI (413.69kPa)
  • Operating Temperature: -40°C ~ 125°C
  • Package / Case: Module
  • Termination Style: Cable with Connector
  • Lifecycle Status: Obsolete
