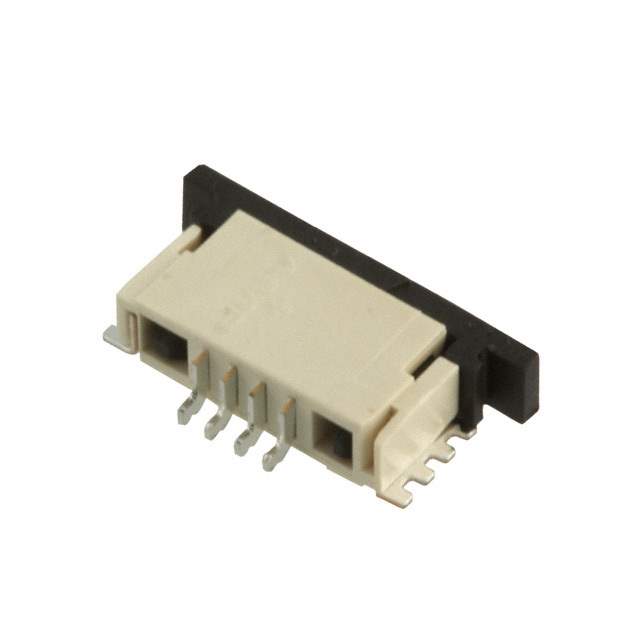

84952-4 Real Image
Same model may have multiple batches, images only for reference.

84952-4

Part No 84952-4
Manufacturer TE Connectivity
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 4POS 1.00MM R/A
Datasheet
84952-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 4
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.101" (2.56mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyamide (PA), Nylon, Glass Filled
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 200V
Temperature Range - Operating -40°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 1A
Contact Finish Thickness 78.7μin (2.00μm)
Housing Color Natural
Actuator Color Black
Win Source Part Number 126805-84952-4
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 84952-4 CAD Model

Description

84952-4 High-Precision Component

The 84952-4 is designed for applications demanding high precision and dependable performance. Its cutting-edge technology ensures accurate results and seamless integration into sophisticated electronic networks.

  • High precision and accuracy
  • Seamless integration capabilities
  • Reliable performance

Applications:

  • Medical devices
  • Scientific research instruments
  • High-end consumer electronics

Incorporate the 84952-4 into your projects for unparalleled precision and efficiency.
