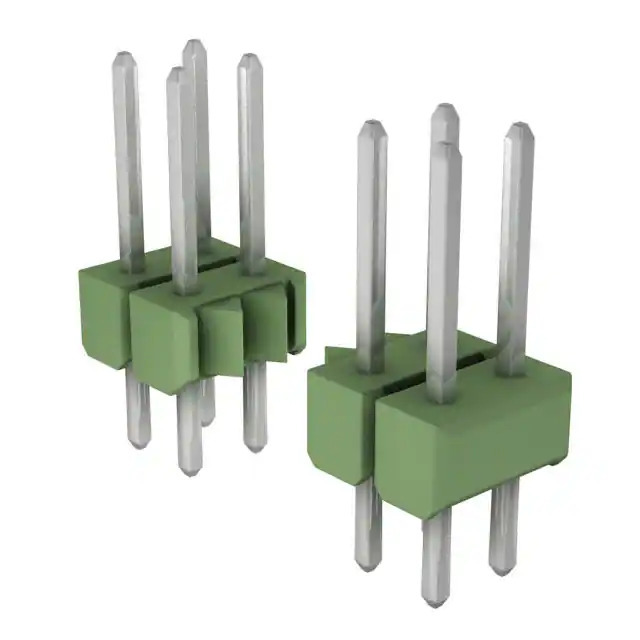

Same model may have multiple batches, images only for reference.

826925-6

Name: 826925-6
Brand: TE Connectivity
SKU: 1366033
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	826925-6
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 12POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	AMPMODU Mod II
Package	Bulk
Product Status	Active
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.264" (6.70mm)
Contact Length - Post	0.126" (3.20mm)
Overall Contact Length	0.500" (12.70mm)
Insulation Height	0.110" (2.79mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	78.7µin (2.00µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polybutylene Terephthalate (PBT)
Features	-
Temperature Range - Operating	-65°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Green
Current Rating (Amps)	5A
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	78.7µin (2.00µm)
Applications	-
Base Product Number	826925
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1366033-826925-6
Ultra Librarian 3D Model	Ultra Librarian 826925-6 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 826925 is a male pin header connector from the AMPMODU Mod II series.

Manufacturer: TE Connectivity AMP Connectors
Part Number: 826925
Series: AMPMODU Mod II
Current Rating: 5A
Pitch: 0.100" (2.54mm)
Connection Type: Board-to-Board or Cable
Fastening Type: Push-Pull
Number of Positions: 12
Number of Rows: 2
Shrouding: Unshrouded
Termination: Solder
Contact Finish: Tin
Contact Material: Copper Alloy
Insulation Material: Polybutylene Terephthalate (PBT)
Flammability Rating: UL94 V-0
Color: Green
Contact Length: 0.500" (12.70mm)
Temperature Range: -65°C to 105°C
