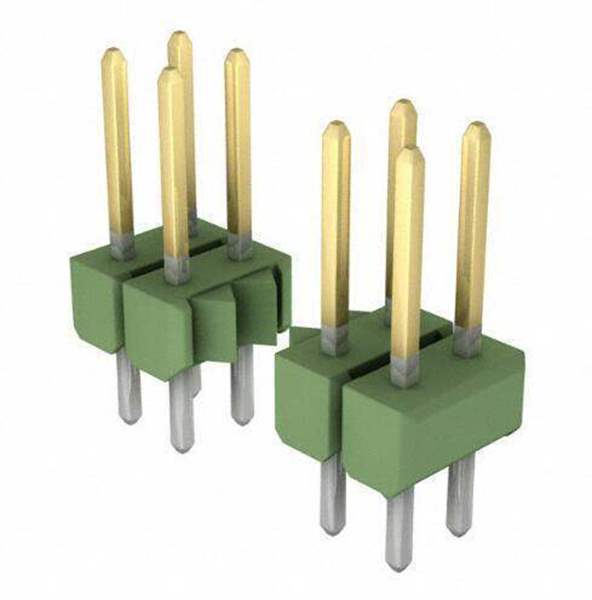

826632-7 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Packaging  Bulk
Part Status Active
Contact Type Male Pin
Fastening Type Push-Pull
Contact Length - Mating 0.264" (6.70mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.110" (2.79mm)
Overall Contact Length 0.500" (12.70mm)
Contact Finish Thickness - Mating 3.90µin (0.099µm)
Insulation Material Polybutylene Terephthalate (PBT)
Win Source Part Number WS1304375-826632-7
Ultra Librarian 3D Model Ultra Librarian 826632-7 CAD Model

Description

Connector Header Through Hole 14 position 0.100" (2.54mm)
