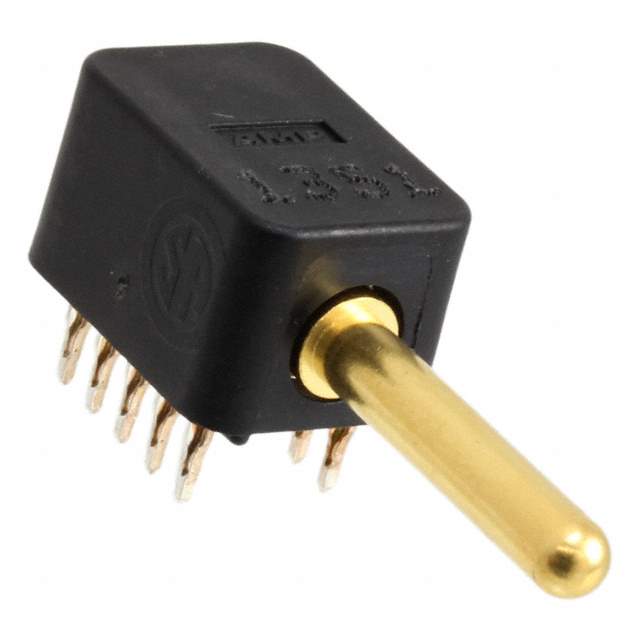

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Power Tap
Packaging Bulk
Number of Positions 1
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Press-Fit
Insulation Height 0.425" (10.80mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 50μin (1.27μm)
Insulation Color Black
Win Source Part Number 766209-796137-2
Popularity Medium
Supply and Demand Status Balance
Quantity per package 720
Family Name 796137
Introduction Date September 02, 2005
ECCN EAR99
Country of Origin Mexico, United States of America
Halogen Free Not Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 796137-2 CAD Model

Description

The TE Connectivity AMP Connectors 766209-796137-2 is a power tap connector packaged in bulk.

  • Positions: 1
  • Rows: 1
  • Termination: Press-fit
  • Mounting: Through Hole, Right Angle
  • Contact Finish-Mating: Gold
  • Insulation Color: Black
  • Supply and Demand Status: Balance
  • Quantity Per Package: 720
