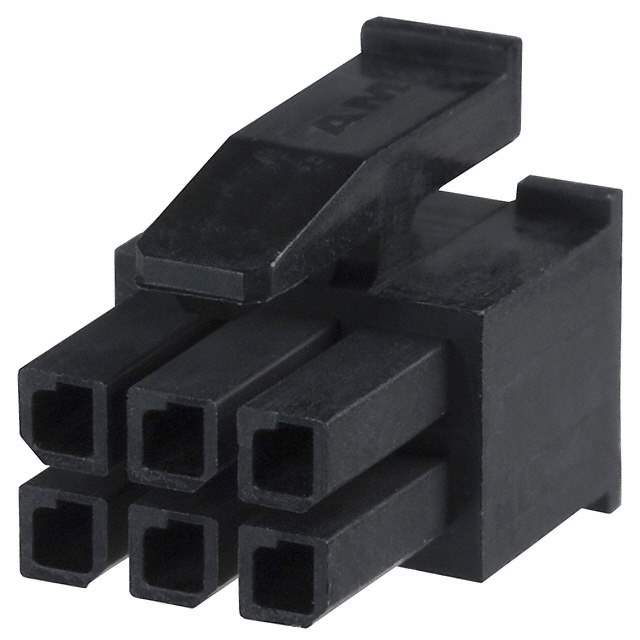

Same model may have multiple batches, images only for reference.

794617-6

Name: 794617-6
Brand: TE Connectivity
SKU: 1334170
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	794617-6
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 6POS 3.00MM / 6 Rectangular Connectors - Housings Receptacle Black 0.118" (3.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	6
Pitch	0.118" (3.00mm)
Number of Rows	2
Row Spacing	0.118" (3.00mm)
Mounting	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Black
Note	Contacts Not Included
Base Product Number	794617
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8538.90.6000
Other Part Number	A30295,-794617-6-LSI,-794617-6-SI,2266-794617-6,7946176,-794617-6-CSI
Standard Package	1
Win Source Part Number	1334170-794617-6
Ultra Librarian 3D Model	Ultra Librarian 794617-6 CAD Model

Alternative Products

Description

This rectangular connector housing is manufactured by TE Connectivity AMP Connectors and has a Win Source Part Number of 1334170-794617-6.

Packaging: Bulk
Standard Package: 1
Positions: 6
Pitch: 0.118" (3.00mm)
Color: Black
Connector Type: Receptacle
Contact Type: Female socket
Rows: 2
Row Spacing: 0.118" (3.00mm)
Fastening Type: Latch lock
Contact Termination: Crimp
Contacts Included: No
MSL Level: 1 (Unlimited)
HTSUS: 8538.90.6000
Base Product Number: 794617
RoHS Compliant: Yes
