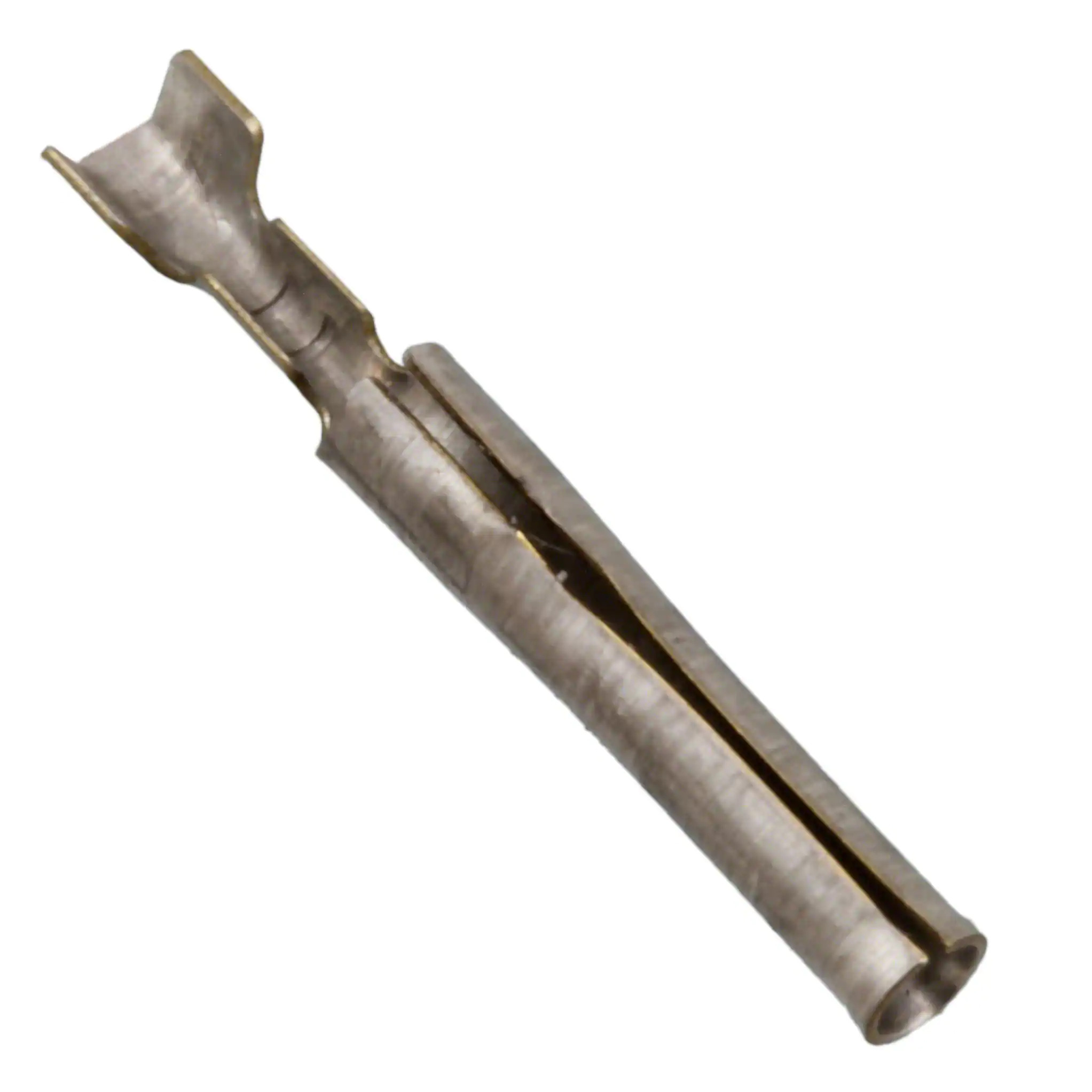

794046-1 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity AMP Connectors
Series Commercial .062" Pin and Socket
Package Tape & Reel (TR)
Product Status Active
Type -
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 24-30 AWG
Contact Finish Tin
Contact Finish Thickness -
Base Product Number 794046
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363271-794046-1
Ultra Librarian 3D Model Ultra Librarian 794046-1 CAD Model

Description

The TE Connectivity AMP Connectors 1363271-794046-1 is a rectangular connector contact manufactured by TE Connectivity AMP Connectors.

  • Series: Commercial .062" Pin and Socket
  • Package: Tape and Reel
  • Termination: Crimp
  • Wire Gauge: 24-30 AWG
  • Contact Finish: Tin
  • Contact Finish Thickness: Not Specified
  • MSL: 1 (unlimited)
  • ECCN: EAR99
  • REACH Status: Vendor Undefined
  • Contact Type: Socket
  • HTSUS: 8536.90.4000
