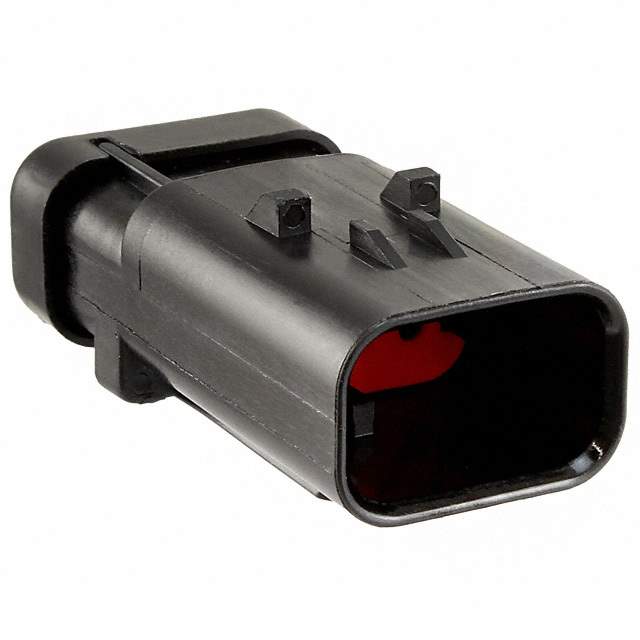

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 9 Weeks
Features 3 Rectangular Connectors - Housings Receptacle Black 0.177" (4.50mm)
Manufacturer TE Connectivity
Series AMPSEAL 16
Package Bulk
Mounting Free Hanging (In-Line)
Family Name 776535
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number -776535-1-SI, A104222, -776535-1-LSI, 7765351, 776535-1-ND, 2266-776535-1
Quantity per package 1
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858204-776535-1
Ultra Librarian 3D Model Ultra Librarian 776535-1 CAD Model

Description

The 858204-776535-1 is a rectangular connector housing receptacle manufactured by TE Connectivity.

  • Series: AMPSEAL 16
  • Popularity: Medium
  • Mounting Type: Free Hanging (In-Line)
  • Packaging: Bulk
  • Quantity per Package: 1
  • Estimated Production Lead Time: 9 weeks
