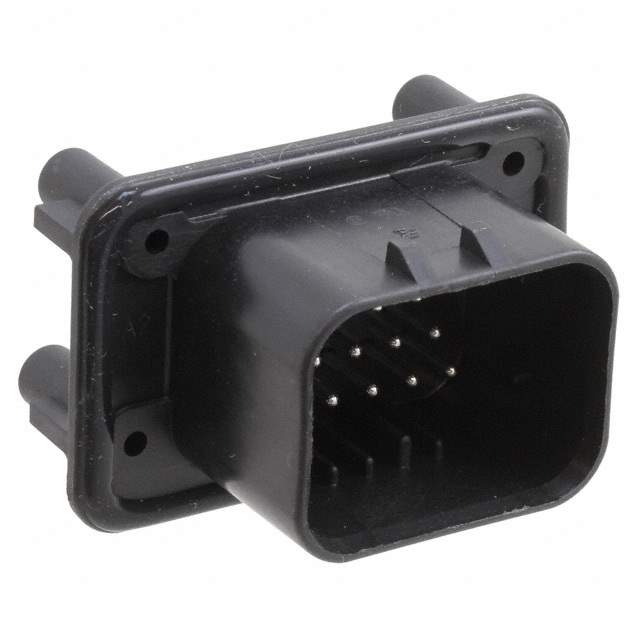

776262-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPSEAL
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.157" (4.00mm)
Number of Positions 14
Number of Rows 3
Row Spacing - Mating 0.157" (4.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Panel Mount, Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Shape Circular
Contact Finish - Mating Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Mounting Flange, Sealed
Temperature Range - Operating -40°C ~ 105°C
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC
Applications Automotive, Industrial
Base Product Number 776262
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 776262-1-ND,-776262-1-LSI,7762621,A106462,-776262-1-SI,-776262-1-CSI
Standard Package 36
Win Source Part Number 1186625-776262-1
Ultra Librarian 3D Model Ultra Librarian 776262-1 CAD Model

Description

The TE Connectivity AMP Connectors 776262-1 is a male pin header connector with 14 positions and is part of the AMPSEAL series.

  • Positions: 14
  • Series: AMPSEAL
  • Mounting Feature: Mounting Flange
  • Application: Automotive and Industrial
  • Connector Type: Header
  • Termination: Solder
  • Fastening Type: Locking Ramp
  • Voltage Rating: 250VAC
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
