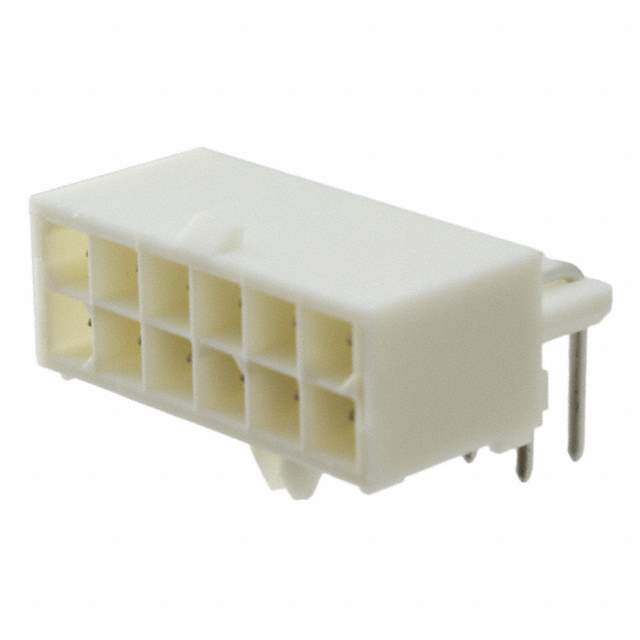

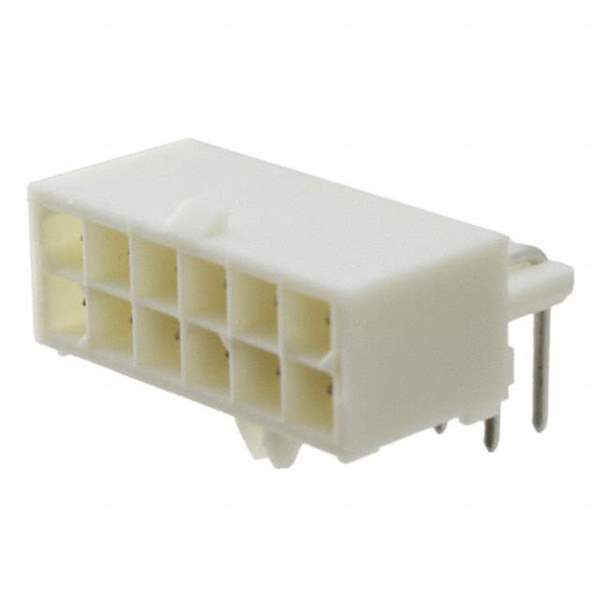

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr TE Connectivity
Series Mini-Universal MATE-N-LOK
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.163" (4.14mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.163" (4.14mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating -
Contact Length - Post 0.145" (3.68mm)
Overall Contact Length -
Insulation Height 0.386" (9.80mm)
Contact Shape Circular
Contact Finish - Mating Tin-Lead
Contact Finish Thickness - Mating 150.0µin (3.81µm)
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Lock
Temperature Range - Operating -20°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Mated Stacking Heights -
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications General Purpose
Base Product Number 770972
RoHS Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 800 pcs
Win Source Part Number 1381181-770972-1
Ultra Librarian 3D Model Ultra Librarian 770972-1 CAD Model

Description

The Mini-Universal MATE-N-LOK 12-position male pin header is a versatile connector designed for various applications.

  • Positions: 12
  • Contact Gender: Male Pin
  • Board Lock: Yes
  • Termination: Solder
  • Contact Material: Brass
  • Voltage Rating: 600VAC
  • Flammability Rating: UL94 V-0
  • Mounting Type: Through-Hole, Right-Angle
  • Shrouded: 4 Walls
  • Contact Length: 0.145"
  • Insulation Height: 0.386"
  • Operating Temperature: -20°C to 85°C
  • Series: TE Connectivity
  • Package: Bulk
  • Standard Package Quantity: 800 pieces
  • Application: General-Purpose Electronic Circuits
