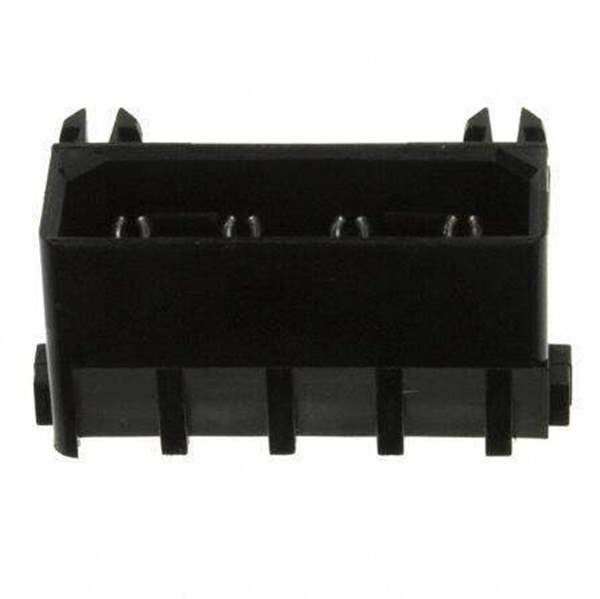

770829-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

770829-1

Part No 770829-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 4POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Package Tube
Product Status Active
Contact Type Male Pin
Pitch - Mating 0.200" (5.08mm)
Termination Solder
Insulation Height 0.330" (8.38mm)
Contact Material Copper Alloy
Win Source Part Number WS1210858-770829-1
Ultra Librarian 3D Model Ultra Librarian 770829-1 CAD Model

Description

Connector Header Surface Mount, Right Angle 4 position 0.200" (5.08mm)
