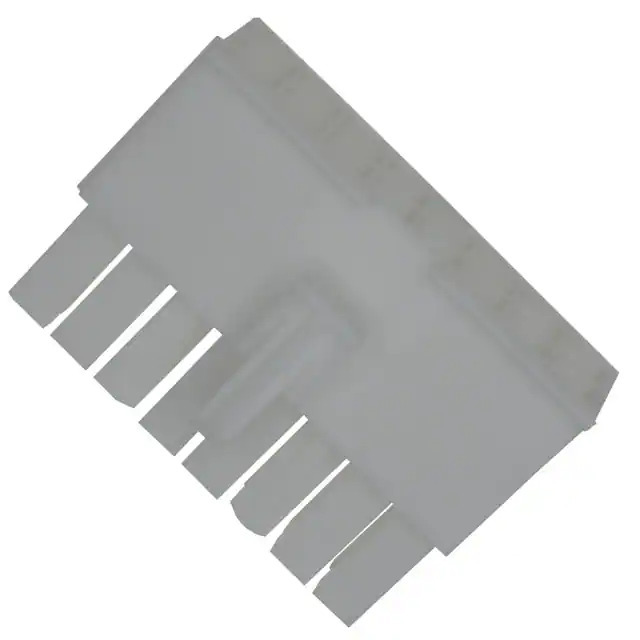

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Bulk
Product Status Active
Connector Type Plug
Contact Type Male or Female
Number of Positions 16
Pitch 0.163" (4.14mm)
Number of Rows 2
Row Spacing 0.163" (4.14mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color White
Features -
Temperature Range - Operating -55°C ~ 105°C
Note Contacts Not Included
Base Product Number 770583
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365903-770583-1
Ultra Librarian 3D Model Ultra Librarian 770583-1 CAD Model

Description

The 770583-1 connector housing is part of the Mini-Universal MATE-N-LOK series manufactured by TE Connectivity AMP Connectors.

  • Connector Type: Rectangular Connector Housing
  • Series: Mini-Universal MATE-N-LOK
  • Positions: 16
  • Rows: 2
  • Pitch: 0.163" (4.14mm)
  • Row Spacing: 0.163" (4.14mm)
  • Color: White
  • Operating Temperature: -55°C to 105°C
  • Fastening Type: Latch Lock
  • Contacts Included: No
