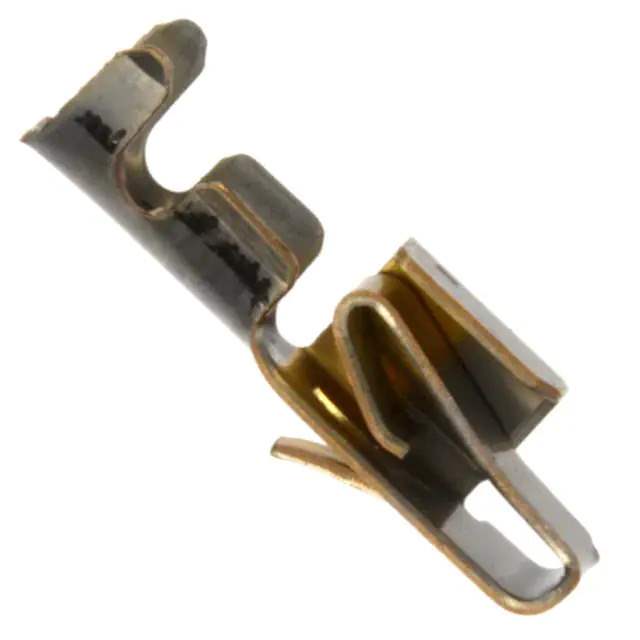

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity
Series SL-156
Package Bulk
Product Status Active
Type Power
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 18-24 AWG
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 770522
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 908417-770522-2
Ultra Librarian 3D Model Ultra Librarian 770522-2 CAD Model

Description

The SL-156 series power socket is a rectangular connector contact designed for use in electronic components.

  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Termination: Crimp
  • Wire Gauge: 18 ~ 24 AWG
  • Package Quantity: 1,000
  • Series: SL-156
  • Manufacturer: TE Connectivity
  • Product Status: Active
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
  • REACH Status: Vendor Undefined
