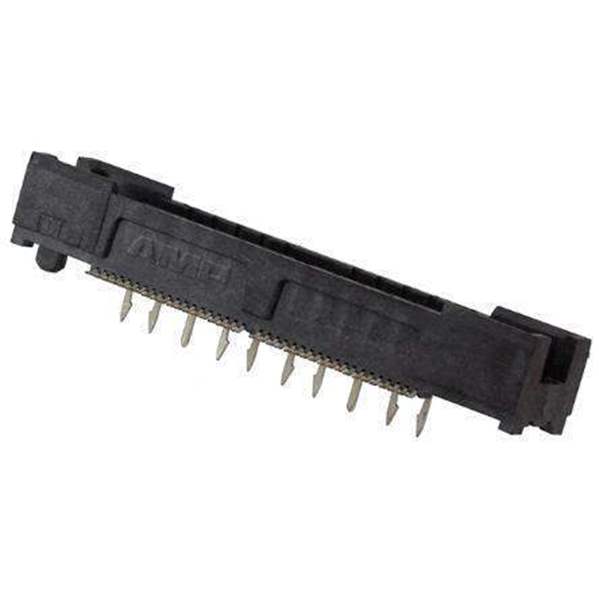

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Package Tube
Product Status Obsolete
Connector Type Receptacle, Center Strip Contacts
Pitch 0.025" (0.64mm)
Mounting Type Surface Mount
Features Board Guide, Ground Bus (Plane)
Contact Finish Palladium-Nickel
Contact Finish Thickness 5.00µin (0.127µm)
Win Source Part Number WS1210865-767054-2
Ultra Librarian 3D Model Ultra Librarian 767054-2 CAD Model

Description

76 Position Connector Receptacle, Center Strip Contacts Surface Mount Palladium-Nickel
