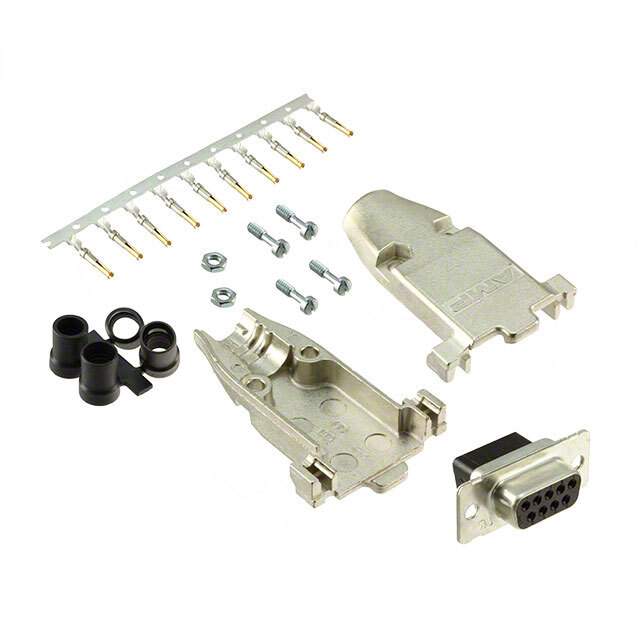

749806-7 Real Image1 749806-7 Real Image2
Same model may have multiple batches, images only for reference.
749806-7 Real Image1 749806-7 Real Image2
749806-7 Real Image1 749806-7 Real Image2
Same model may have multiple batches, images only for reference.

749806-7

Part No 749806-7
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS CRIMP / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Mfr TE Connectivity
Series AMPLIMITE HDP-20
Package Bulk
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Cable Side, Male Short Screw (4-40)
Termination Crimp
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) Varies by Wire Gauge
Backset Spacing -
Features Shielded
Voltage Rating 250V
Color Black
Contact Form -
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Wire Gauge -
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 749806
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Standard Package 1 pcs
Win Source Part Number 1381149-749806-7
Ultra Librarian 3D Model Ultra Librarian 749806-7 CAD Model

Description

The 1198285 is a D-sub connector assembly from the AMPLIMITE HDP-20 series by TE Connectivity.

  • Series: AMPLIMITE HDP-20
  • Shielded: Yes
  • Positions: 9
  • Color: Black
  • Contact Gender: Receptacle Female Sockets
  • Contact Type: Signal
  • Number of Rows: 2
  • Termination: Crimp
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Voltage Rating: 250V
  • Operating Temperature: -55°C to 105°C
  • Material: Steel
  • Shell Finish: Tin Plated
  • Dielectric Material: Polyamide (PA), Nylon, Glass Filled
  • Mounting Type: Free Hanging (In-Line)
  • Package: Bulk
