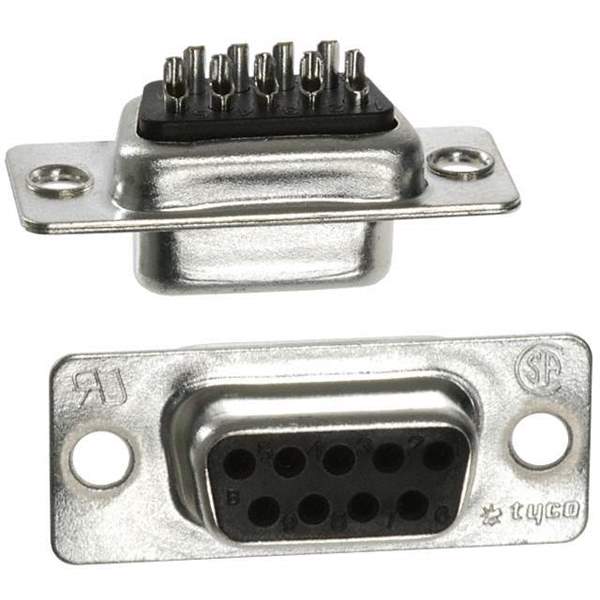

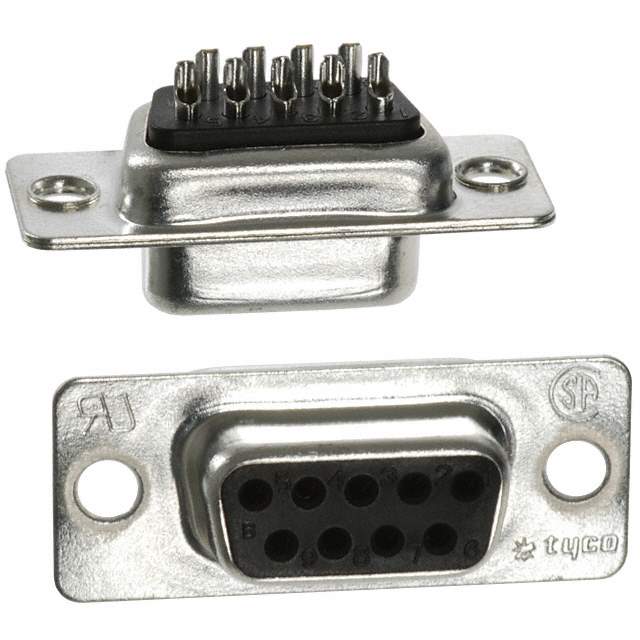

747905-2 Real Image
Same model may have multiple batches, images only for reference.

747905-2

Part No 747905-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS SLDR CUP / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Product Status Obsolete
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Free Hanging (In-Line)
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Voltage Rating 250V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 747905
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number A2047
Standard Package 50
Win Source Part Number 1333240-747905-2
Ultra Librarian 3D Model Ultra Librarian 747905-2 CAD Model

Description

The TE Connectivity AMP Connectors 1333240-747905-2 is a D-sub connector assembly with 9 positions.

  • Positions: 9
  • Rows: 2
  • Connector Type: Receptacle with female sockets
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Termination: Solder Cup
  • Temperature Range: -55°C ~ 105°C
  • Voltage Rating: 250V
  • Packaging: Tray
  • Mounting: Free Hanging (In-Line)
  • Dimension: 1 (DE, E)
  • Flange Feature: Housing/Shell (Unthreaded)
  • Shell Material: Steel
  • Shell Plating: Tin Plated
  • Dielectric Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Status: Obsolete
  • RoHS Compliant: No
