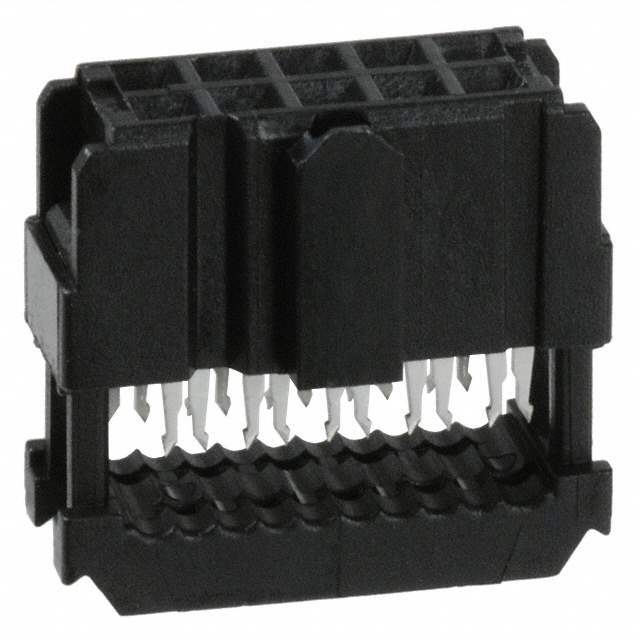

746285-1TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

746285-1

Part No 746285-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 10P IDC 26-28AWG GOLD
Datasheet
746285-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207870-746285-1
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects -Rectangular Connectors -Free Hanging, Panel Mount
Series AMP-Latch
Package Bulk
Product Status Obsolete
Connector Type Receptacle
Contact Type Forked
Pitch 0.100" (2.54mm)
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Ultra Librarian 3D Model Ultra Librarian 746285-1 CAD Model

Description

10 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG
