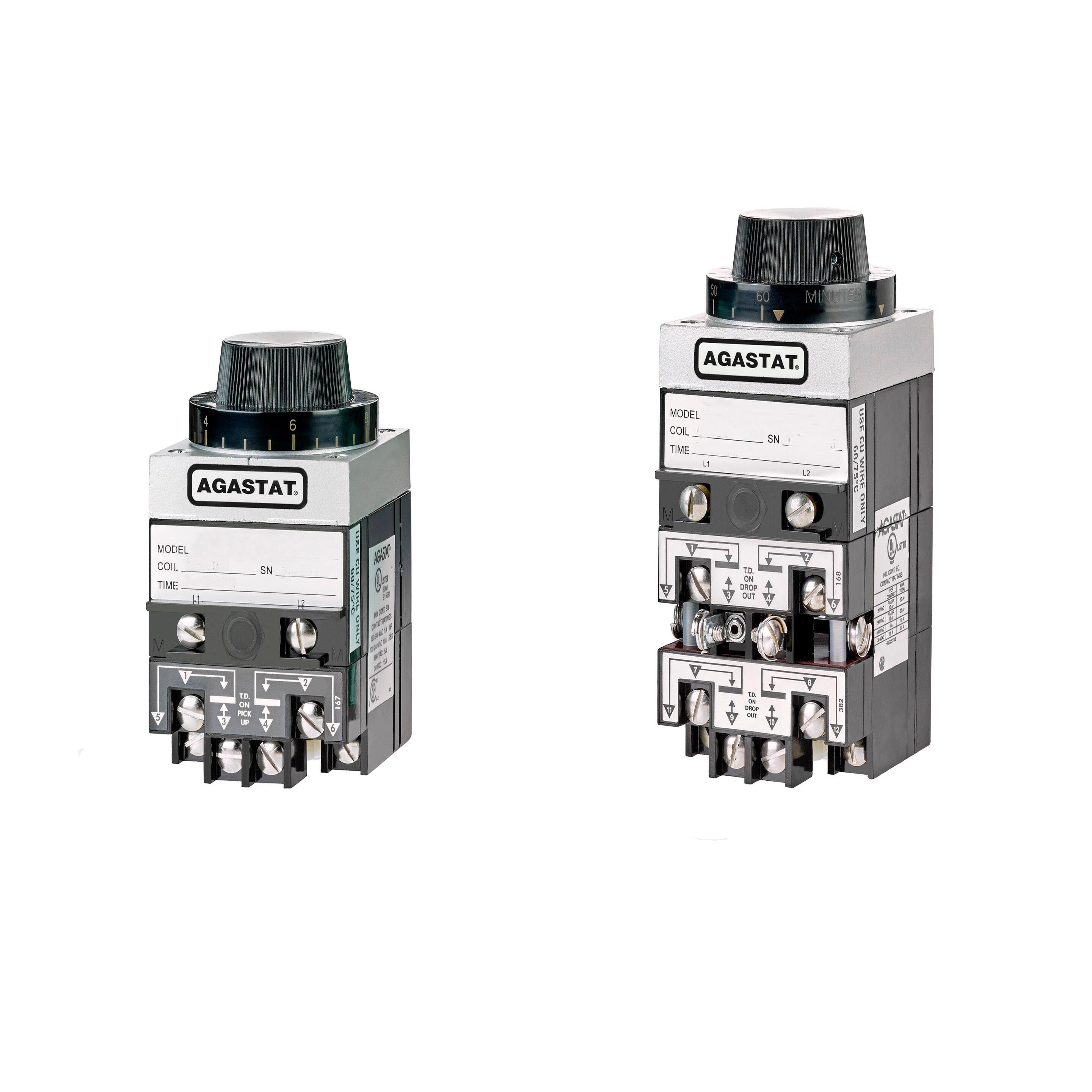

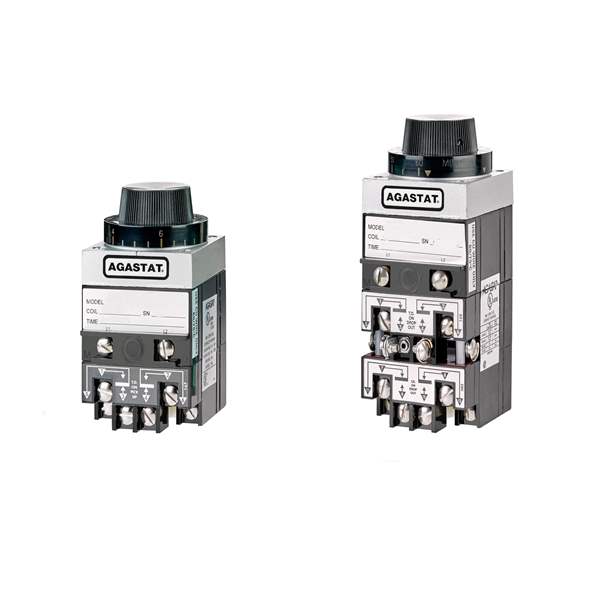

7022AF

Part No 7022AF
Manufacturer TE Connectivity
Catalog Time Delay Relays
Description RELAY TIME DELAY 10MIN 10A 240V
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Panel Mount
Relay Type Mechanical Relay
Function Off-Delay
Circuit DPDT (2 Form C)
Delay Time 1 Min ~ 10 Min
Contact Rating @ Voltage 10A @ 240VAC
Voltage - Supply 120VAC
Termination Style Screw Terminal
Timing Adjustment Method Hand Dial
Timing Initiate Method Input Voltage
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1550878-7022AF
Ultra Librarian 3D Model Ultra Librarian 7022AF CAD Model

Description
