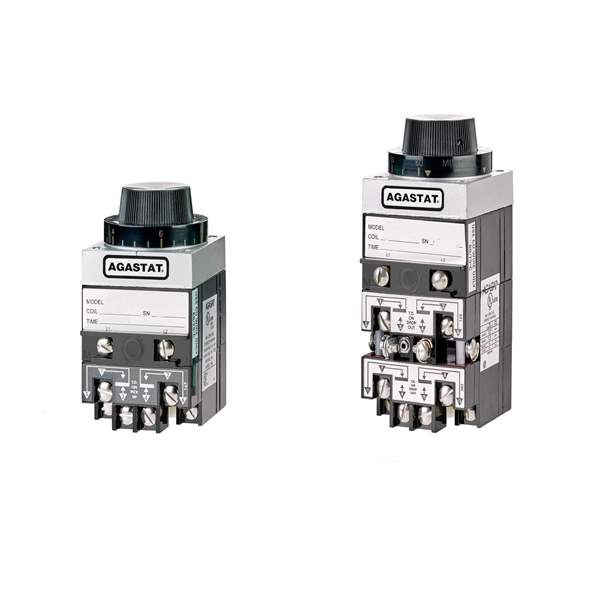

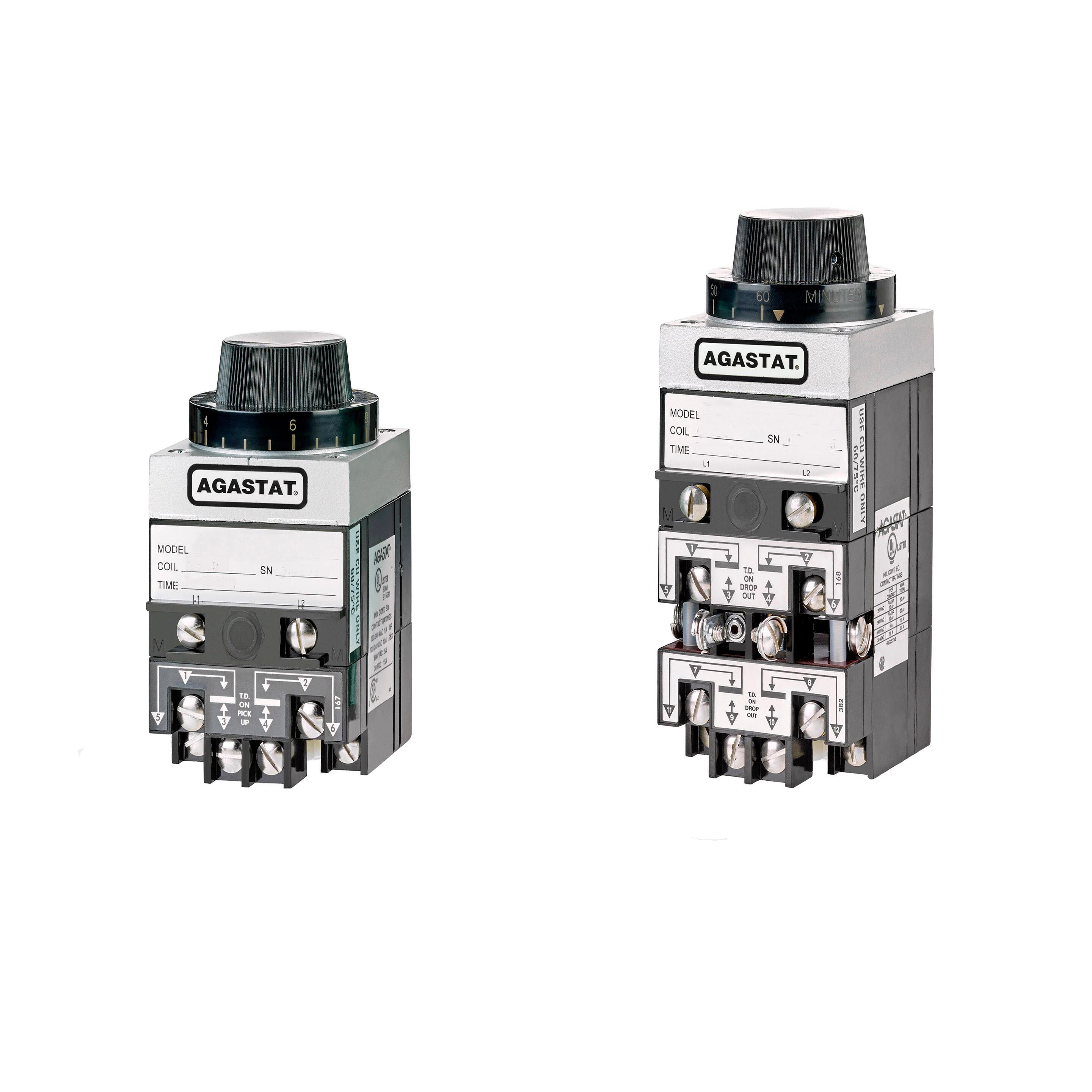

7012AE TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

7012AE

Part No 7012AE
Manufacturer TE Connectivity
Catalog Time Delay Relays
Description RELAY TIME DELAY 200SEC 10A 240V
Datasheet
7012AE Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Panel Mount
Relay Type Mechanical Relay
Function On-Delay
Circuit DPDT (2 Form C)
Delay Time 20 Sec ~ 200 Sec
Contact Rating @ Voltage 10A @ 240VAC
Voltage - Supply 120VAC
Termination Style Screw Terminal
Timing Adjustment Method Hand Dial
Timing Initiate Method Input Voltage
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1550865-7012AE
Ultra Librarian 3D Model Ultra Librarian 7012AE CAD Model
