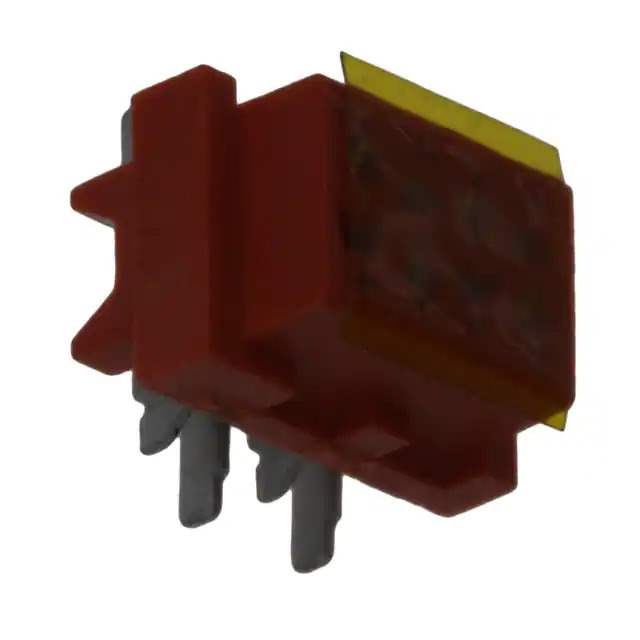

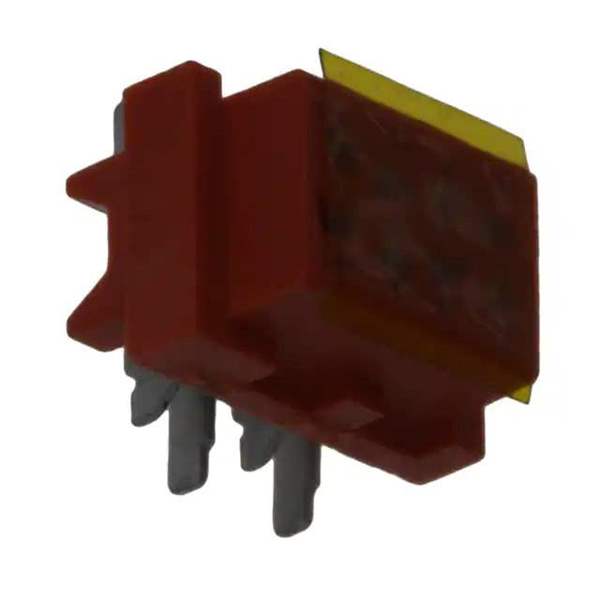

Same model may have multiple batches, images only for reference.

7-188275-4

Name: 7-188275-4
Brand: TE Connectivity
SKU: 848916
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	7-188275-4
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT 4POS 0.1 TIN SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	TE Connectivity
Series	Micro-MaTch
Package	Tape & Reel
Product Status	Active
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Red
Insulation Height	0.209" (5.30mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Pick and Place
Voltage Rating	100VDC
Applications	Automotive, General Purpose
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Material	Phosphor Bronze
Base Product Number	188275
Standard Package	900 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	848916-7-188275-4
Ultra Librarian 3D Model	Ultra Librarian 7-188275-4 CAD Model

Alternative Products

Description

The Micro-MaTch Connector is a versatile component for your electrical connections.

Application: Automotive and General Purpose
Connector Type: Receptacle
Contact Type: Forked
Positions: 4
Pitch: 0.100" (2.54mm)
Mounting Type: Surface Mount
Contact Material: Phosphor Bronze
Insulation Material: Polyamide
Voltage Rating: 100VDC
Temperature Range: -40°C to 105°C
Packaging: Tape & Reel
Manufacturer: TE Connectivity
