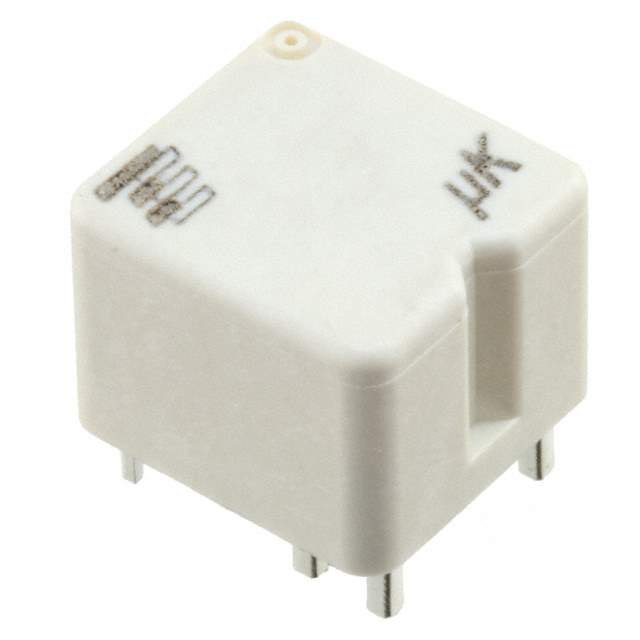

7-1414967-8 Real Image
Same model may have multiple batches, images only for reference.

7-1414967-8

Part No 7-1414967-8
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY AUTO SPDT 30A 10V / Power Relay 12VDC SPDT(12x12.9x10.2)mm THT Automotive
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Raychem Cable Protection
Series Micro Relay K
Packaging Bulk
Relay Type Automotive
Coil Type Non Latching
Coil Current 55mA
Coil Voltage 10VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 30A
Switching Voltage 10VDC - Nom
Turn On Voltage (Maximum) 5.7 VDC
Turn Off Voltage (Minimum) 1.25 VDC
Operate Time 3ms
Release Time 1.5ms
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 552 mW
Coil Resistance 181 Ohms
Operating Temperature Range -40°C ~ 105°C
Win Source Part Number 798964-7-1414967-8
Popularity Medium
Supply and Demand Status Limited
Family Name 7-1414967-8
Introduction Date February 21, 2007
ECCN EAR99
Country of Origin Portugal
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 7-1414967-8 CAD Model

Description

The 7-1414967-8 is an electronic component from the Micro Relay K series manufactured by TE Connectivity Raychem Cable Protection.

  • Relay Type: Automotive
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Voltage: 10VDC
  • Coil Resistance: 181 Ohms
  • Contact Rating (Current): 30A
  • Switching Voltage: 10VDC - Nom
  • Turn on Voltage (Maximum): 5.7 VDC
  • Turn off Voltage (Minimum): 1.25 VDC
  • Coil Type: Non-latching
  • Operate Time: 3ms
  • Release Time: 1.5ms
  • Mounting: Through-hole
  • Termination Style: PC pin
  • Halogen Free: Yes
  • Operating Temperature Range: -40°C to 105°C
  • Manufactured In: Portugal
  • Estimated EOL Date: 2025
