Products specifications Report Issue?

Category Connectors, Interconnects>AC Power Connectors>Power Entry Modules (PEM)
Manufacturer TE Connectivity Corcom Filters
Packaging Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades
Current Rating - Appliance Inlet 15A
Voltage Rating - Appliance Inlet 250VAC
Number of Positions 3
Filter Type Unfiltered - Commercial
Accomodates a Fuse No
Mounting Panel Mount, Flange
Termination Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions Rectangular - 27.40mm x 19.80mm
Approval Agency CSA, UL, VDE
Base Product Number 6ESR
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Other Part Number -6ESRM-3-SI,6609133-3,1609133-3,CCM1401,6ESRM3
Standard Package 1
Win Source Part Number 1334419-6ESRM-3
Ultra Librarian 3D Model Ultra Librarian 6ESRM-3 CAD Model

Description

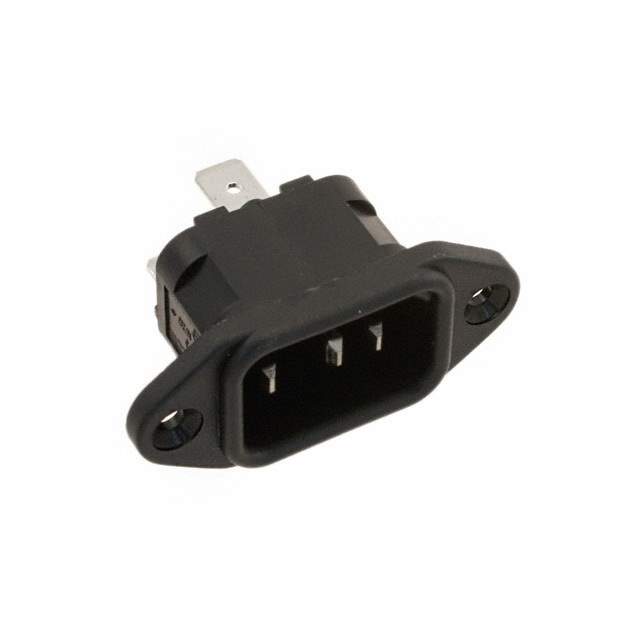

The TE Connectivity Corcom Filters 1334419-6ESRM-3 is a power entry module (PEM) that is designed to provide a quick and easy way to connect an appliance or equipment to a power source.

  • Positions: 3
  • Connector Type: male blade receptacle
  • Termination: quick connect, 0.250 inches (6.3mm)
  • Panel Cutout Dimension: 27.40mm x 19.80mm
  • Panel Mounting: flange
  • Filter Type: unfiltered-commercial
  • Fuse Accommodation: No
  • Current Rating: 15A
  • Voltage Rating: 250VAC
  • Approvals: CSA, UL, and VDE
  • ROHS3 Compliant: true
