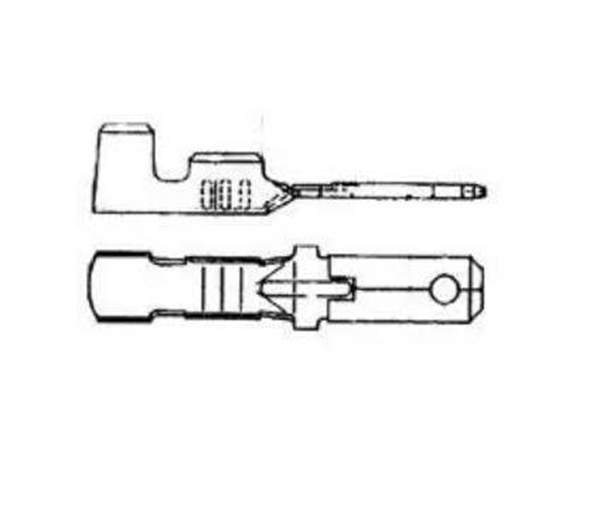

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity Aerospace, Defense and Marine
Category Connectors, Interconnects Terminals Quick Connects, Quick Disconnect Connectors
Package Bulk
Product Status Active
Terminal Type Standard
Tab Width 0.076" (1.93mm)
Tab Thickness 0.016" (0.41mm)
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Win Source Part Number WS1210245-66169-2
Ultra Librarian 3D Model Ultra Librarian 66169-2 CAD Model

Description

0.076" (1.93mm) Quick Connect Male 18-22 AWG Crimp Connector Non-Insulated
