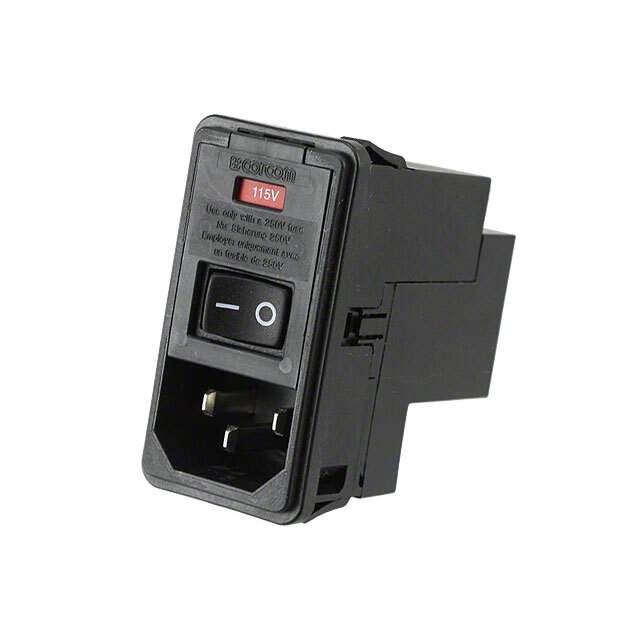

6609107-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr TE Connectivity Corcom Filters
Series P, Corcom
Package Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Current - IEC 3A
Voltage - IEC 120VAC
Current - UL 3A
Voltage - UL 250VAC
Filter Type Filtered (EMI, RFI) - Commercial
Accomodates a Fuse Yes (Fuse Not Included)
Number of Positions 3
Mounting Type Panel Mount, Snap-In
Termination Quick Connect - 0.187" (4.7mm)
Switch Features Switch On-Off
Features Voltage Selector
Fuse Holder, Drawer Fuse Holder, Twin Fused
Panel Cutout Dimensions Variable Size
Panel Thickness 0.031" ~ 0.114" (0.79mm ~ 2.90mm)
Approval Agency CSA, UL, VDE
Base Product Number 6609107
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 1316037-6609107-5
Ultra Librarian 3D Model Ultra Librarian 6609107-5 CAD Model

Description

The 1316037-6609107-5 is a power entry connector that is part of the P, Corcom series.

  • Series: P, Corcom
  • Connector Type: Receptacle, Male Blades - Module
  • Termination: Quick Connect - 0.187" (4.7mm)
  • Filter Type: Filtered (EMI, RFI) - Commercial
  • Switch Feature: Switch On-Off
  • Fuse Holder, Drawer: Fuse Holder, Twin Fused Drawer
  • Fuse: Fuse
  • Panel Cutout Dimensions: Variable Size
  • Panel Thickness: 0.031" ~ 0.114" (0.79mm ~ 2.90mm)
  • Current - IEC: 3A
  • Voltage - IEC: 120VAC
  • Current - UL: 3A
  • Voltage - UL: 250VAC
