Same model may have multiple batches, images only for reference.

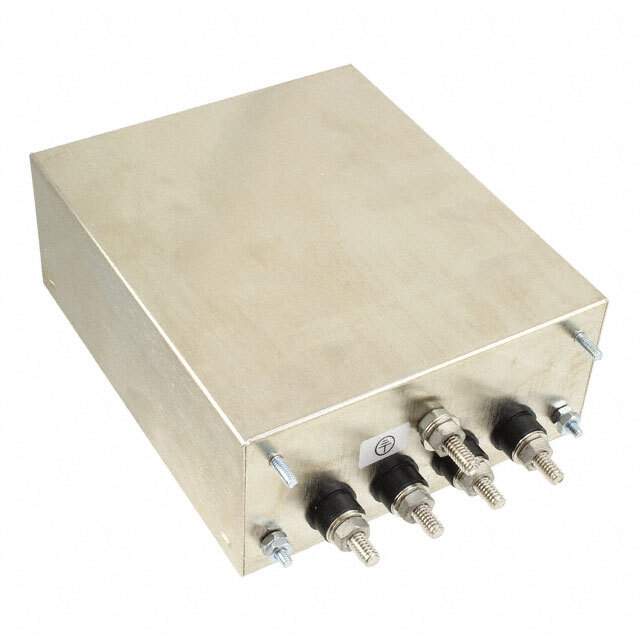

6609072-1 Real Image
Same model may have multiple batches, images only for reference.

6609072-1

Part No 6609072-1
Manufacturer TE Connectivity
Catalog Power Line Filter Modules
Description LINE FILTER 20A CHASSIS MOUNT  /  Three Phase (Wye) EMC/EMI Line Filter 20 A AC 50/60Hz Two Stage Threaded Post (1/4-20)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr TE Connectivity Corcom Filters
Series A
Package Bulk
Filter Type Three Phase (Wye)
Configuration Two Stage
Voltage - Rated AC (Phase to Ground/Neutral) 250 V
Voltage - Rated AC (Phase to Phase) 440 V
Current 20 A
Frequency - Operating 50/60Hz
Applications General Purpose
Approval Agency CSA, UL
Temperature Range - Operating -10°C ~ 40°C
Mounting Type Chassis Mount
Termination Style Threaded Post (1/4-20)
Inductance 4.44mH
Base Product Number 6609072
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 20AYP6C-NDR,20AYP6C-ND,1609072-1,20AYP6C,66090721
Standard Package 1
Win Source Part Number 1161138-6609072-1
Ultra Librarian 3D Model Ultra Librarian 6609072-1 CAD Model

Description

The TE Connectivity Corcom Filters A series is a power line filter module that is designed for use in a wide range of applications.

  • Current Rating: 20A
  • Configuration: Two-Stage
  • Filter Type: Three-Phase (Wye)
  • Rated AC Voltage (Phase to Ground/Neutral): 250V
  • Rated AC Voltage (Phase to Phase): 440V
  • Operating Temperature Range: -10°C to 40°C
