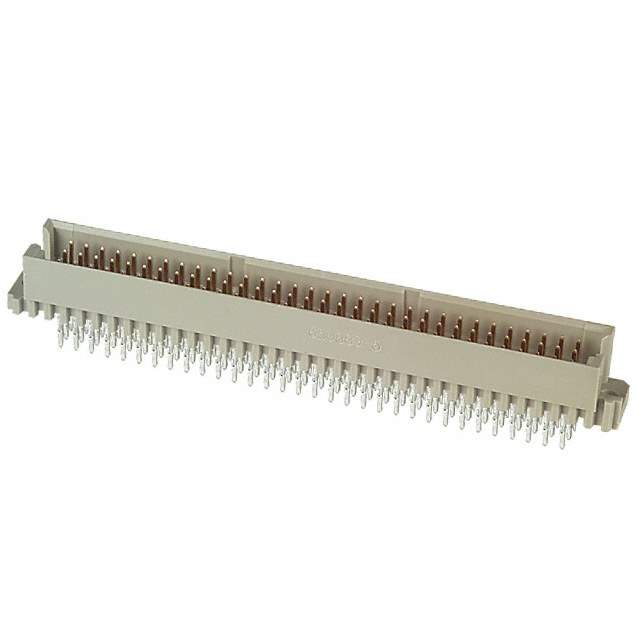

650889-5 Real Image
Same model may have multiple batches, images only for reference.

650889-5

Part No 650889-5
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN DIN PLUG 96POS PCB GOLD / 96 Position Din Connector Plug, Male Pins Gold Through Hole
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>DIN 41612
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Plug, Male Pins
Number of Positions 96
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style R
Level, Class 2
Mounting Through Hole
Termination Press-Fit
Contact Finish Gold
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Material - Insulation Polyester, Glass Filled
Base Product Number 650889
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -650889-5-SI,2266-650889-5,A1241,6508895,-650889-5-CSI
Standard Package 30
Win Source Part Number 1333107-650889-5
Ultra Librarian 3D Model Ultra Librarian 650889-5 CAD Model

Description

The TE Connectivity AMP Connectors 1333107-650889-5 is a 96-position DIN 41612 plug connector with male pins.

  • Pitch: 2.54mm
  • Positions Loaded: All
  • Contact Finish: Gold
  • Insulation Material: Polyester, Glass Filled
  • Operating Temperature Range: -55°C to 125°C
  • Mounting Style: Through-Hole
  • RoHS Compliant: No
