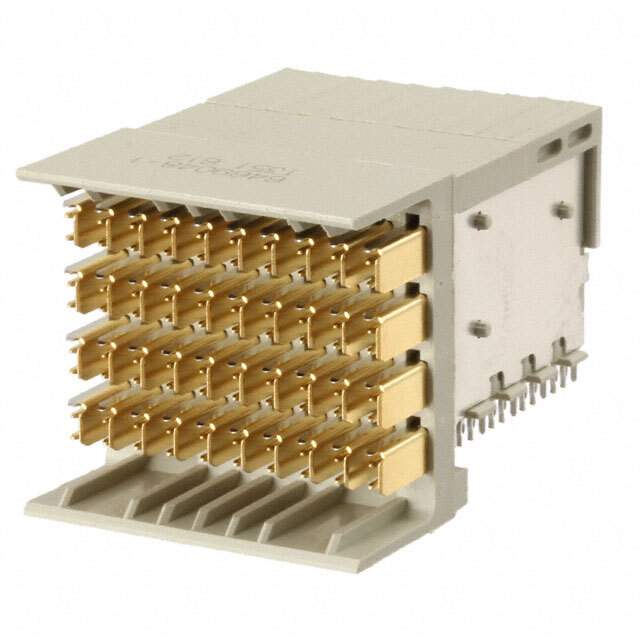

6469048-1 Real Image
Same model may have multiple batches, images only for reference.

6469048-1

Part No 6469048-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN HDR HI SPEED 120POS EDGE MT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Usage Daughtercard
Connector Type Header, Male Pins and Blades
Connector Style High Speed
Number of Positions 120
Number of Positions Loaded All
Pitch 0.098" (2.50mm)
Number of Rows 8
Number of Columns 10
Mounting Style Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 80 Single Signal, 40 Ground
Contact Finish Gold
Contact Finish Thickness 30.0μin (0.76μm)
Current Rating (Amps) 0.700A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -65°C ~ 105°C
Voltage Rating 250V
Manufacturer Pack Quantity 20
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813959-6469048-1
Ultra Librarian 3D Model Ultra Librarian 6469048-1 CAD Model

Description

The TE Connectivity AMP Connectors 813959-6469048-1 is a 120-position, high-speed header connector.

  • Mounting Style: Board edge, through-hole, and right-angle
  • Pitch: 0.098" (2.50mm)
  • Press-Fit Compatible: Yes
  • Voltage Rating: 250V
  • Material Flammability Rating: UL94 V-0
  • RoHS Compliant: Yes
  • Packaging: Tube
  • Manufacturer Pack Quantity: 20
