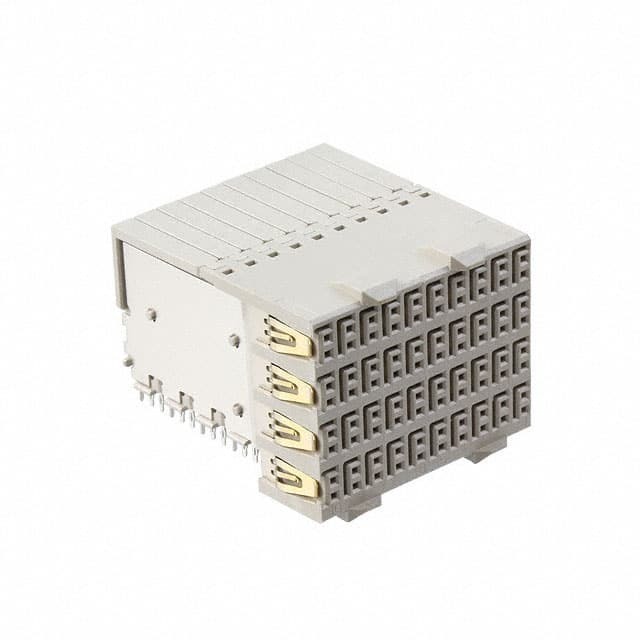

Part No 6469001-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RCPT HI SPEED 120P EDGE MT / 120 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle High Speed
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr TE Connectivity
Series Z-PACK HM-Zd
Package Tube
Product Status Active
Connector Usage Daughtercard
Connector Type Receptacle, Female Sockets
Connector Style High Speed
Number of Positions 120
Number of Positions Loaded All
Pitch 0.098" (2.50mm)
Number of Rows 8
Number of Columns 10
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 80 Single Signal, 40 Ground
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 0.700A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -65°C ~ 105°C
Voltage Rating 250V
Base Product Number 6469001
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856898-6469001-1
Ultra Librarian 3D Model Ultra Librarian 6469001-1 CAD Model

Description

The Z-PACK HM-Zd series from TE Connectivity is a specialized backplane connector designed for high-speed applications.

  • Pitch: 0.098 inches (2.50mm)
  • Positions: 120
  • Application: Daughtercard
  • Connector Type: Receptacle
  • Sockets: Female
  • Positions Loaded: All
  • Rows: 8
  • Columns: 10
  • Contact Layout: 80 single signal, 40 ground
  • Contact Finish: Gold, 30.0µin (0.76µm)
  • Voltage: 250V
  • Temperature Range: -65°C to 105°C
  • Flammability Rating: UL94 V-0
  • Mounting: Through Hole, Right Angle
  • Termination: Press-Fit
  • Package: Tube
  • Standard Package Quantity: 20 pieces
