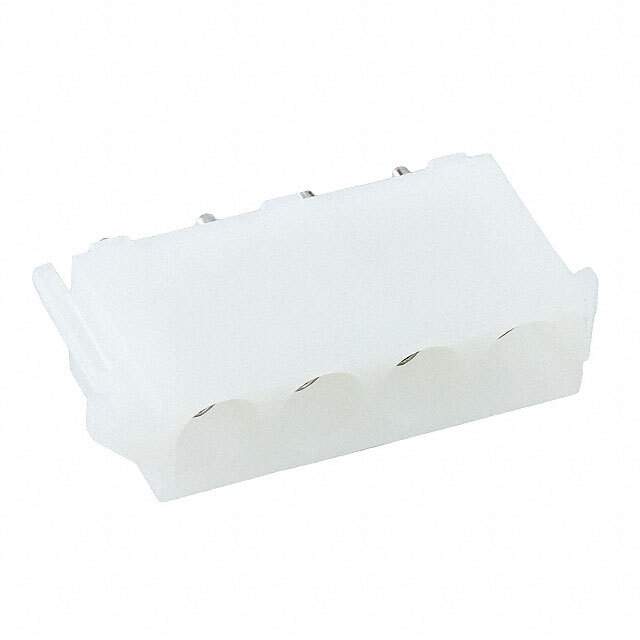

Same model may have multiple batches, images only for reference.

643415-1

Name: 643415-1
Brand: TE Connectivity
SKU: 1334307
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	643415-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HDR 4POS 0.25 TIN PCB / 4 Position Header Connector 0.250" (6.35mm) Through Hole Tin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Header
Contact Type	Female Socket
Style	Board to Cable/Wire
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	0.250" (6.35mm)
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Finish - Mating	Tin
Insulation Color	Natural
Insulation Height	0.580" (14.73mm)
Contact Length - Post	0.155" (3.94mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-2
Contact Finish - Post	Tin
Features	Board Guide
Insulation Material	Polyamide (PA), Nylon
Contact Shape	Circular
Contact Material	Phosphor Bronze
Base Product Number	643415
RoHS Status	Not applicable
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	643415-1-ND,A25315,-643415-1-SI
Standard Package	100
Win Source Part Number	1334307-643415-1
Ultra Librarian 3D Model	Ultra Librarian 643415-1 CAD Model

Alternative Products

Description

The 1334307-643415-1 is a female socket connector manufactured by TE Connectivity AMP Connectors.

Connector Type: Rectangular Connector
Application: Board-to-Cable / Wire
Number of Positions: 4
Packaging: Bulk
Standard Package: 100
Features: Board Guide, Locking Ramp
Contact Material: Phosphor Bronze
Contact Finish: Tin
Insulation Material: Polyamide (PA), Nylon
Insulation Color: Natural
Operating Temperature Range: -40°C to 105°C
ECCN: EAR99
MSL: Level 1 (Unlimited)
