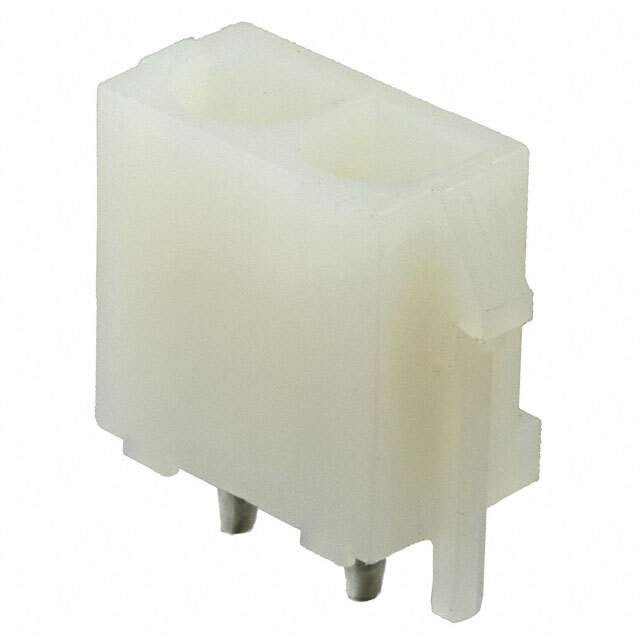

641963-1

Name: 641963-1
Brand: TE Connectivity
SKU: 1334225
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	641963-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2POS 6.35MM / Connector Header Through Hole 2 position 0.250" (6.35mm)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.250" (6.35mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.155" (3.94mm)
Insulation Height	0.550" (13.97mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA), Nylon
Features	Board Guide
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-2
Insulation Color	Natural
Current Rating (Amps)	12A
Voltage Rating	600VAC
Applications	General Purpose
Base Product Number	641963
RoHS Status	Not applicable
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	641963-1-ND,-408050987-SI,6419631,-408050987-SI-ND,-641963-1-SI,A25288,2266-641963-1
Standard Package	200
Win Source Part Number	1334225-641963-1
Ultra Librarian 3D Model	Ultra Librarian 641963-1 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 1334225-641963-1 is a male pin header connector that has two positions and is loaded with all contacts.

Position Number: 2
Loaded: All contacts
Voltage Rating: 600VAC
Current Rating: 12A
Package: shrouded - 4 wall
Pitch: 0.250" (6.35mm)
Application: general-purpose
Mounting Type: through hole
