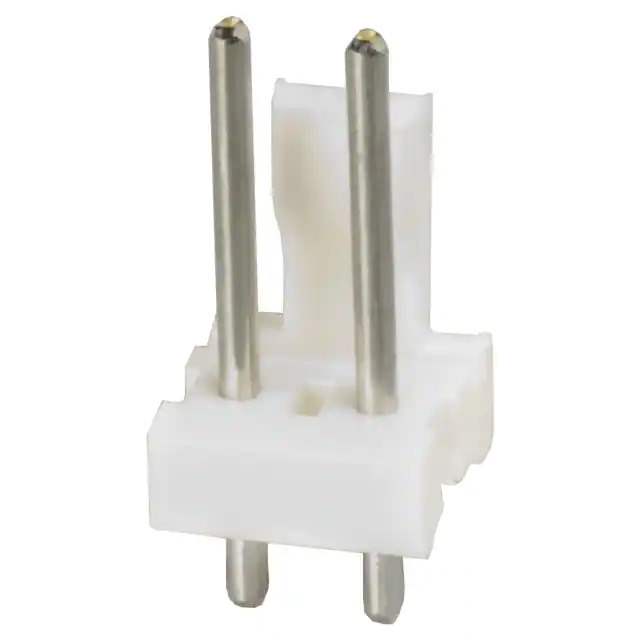

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series MTA-156
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.400" (10.16mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.650" (16.51mm)
Insulation Height 0.425" (10.80mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Applications General Purpose, Industrial
Base Product Number 640388
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 850646-640388-2
Ultra Librarian 3D Model Ultra Librarian 640388-2 CAD Model

Description

The MTA-156 series header connector with male pins is a versatile and reliable solution for your electrical connection needs.

  • Positions: 2
  • Rows: 1
  • Termination: Soldering
  • Lock: Friction Lock
  • Contact Material: Copper Alloy
  • Voltage Rating: 600VAC
  • Insulation Material: Thermoplastic, Glass-Filled
  • Color: Natural
  • Design: Shrouded, 1 Wall
  • Pitch: 0.156 inches (3.96mm)
  • Contact Length: 0.125 inches (3.18mm)
  • Overall Contact Length: 0.650 inches (16.51mm)
  • Insulation Height: 0.425 inches (10.80mm)
  • Operating Temperature: -55°C to 105°C
  • Application: General-Purpose and Industrial Electronic Projects
