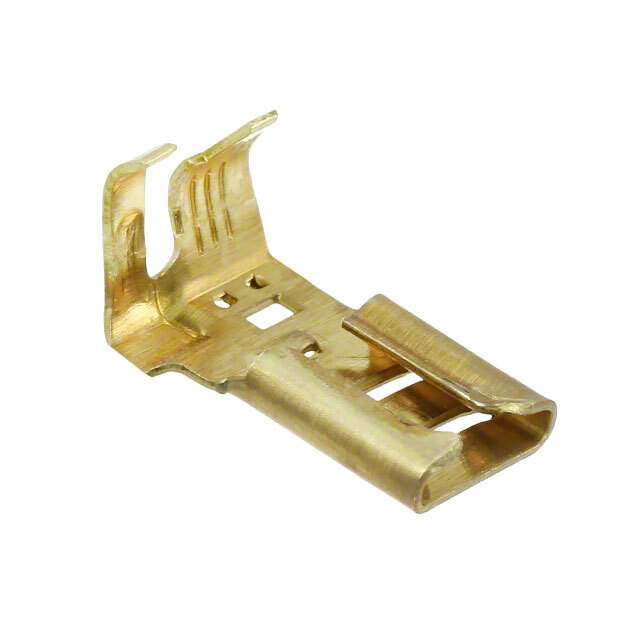

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line), Right Angle
Contact Material Brass
Insulation Diameter 0.070" ~ 0.130" (1.78mm ~ 3.30mm)
Base Product Number 63577
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names -63577-1-SI,635771,-63577-1-CSI,63577-1-ND,A104107TR,2266-63577-1TR,A104107CT
Standard Package 4,000
Win Source Part Number 1192931-63577-1
Ultra Librarian 3D Model Ultra Librarian 63577-1 CAD Model

Description

The 63577-1 is a female terminal from TE Connectivity AMP Connectors that belongs to the Terminals - Quick Connects, Quick Disconnect Connectors category.

  • Series: Faston
  • Packaging: Tape & Reel or Cut Tape
  • Standard Package: 4,000
  • Wire Gauge: 16-22 AWG
  • Contact Material: Brass
  • Terminal Type: Angled - 90°, Flag
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Insulation Diameter: 0.070" ~ 0.130" (1.78mm ~ 3.30mm)
  • Mounting Type: Free Hanging (In-Line), Right Angle
  • Insulation: Non-Insulated
  • Package/Case: DO-214AA, SMB
