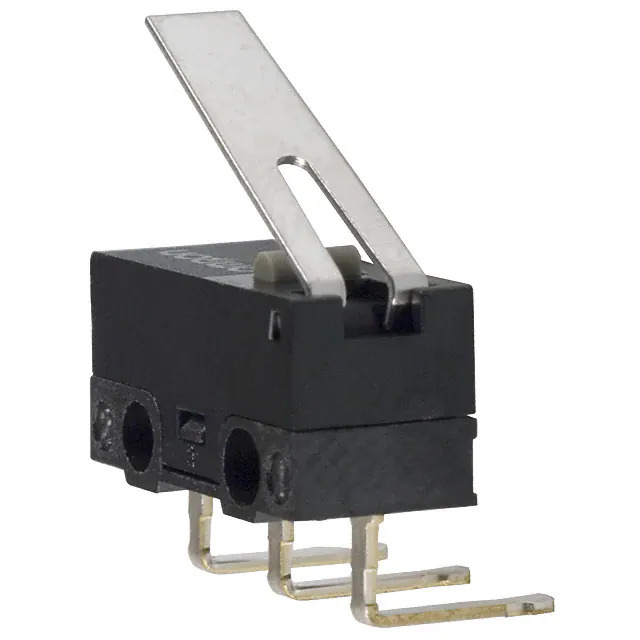

D2F-L-A1 Omron
Same model may have multiple batches, images only for reference.

D2F-L-A1

Part No D2F-L-A1
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V / Switch SPDT Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2F
Package Tray
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection IP40
Features Actuator Mounted Left Side
Operating Force 80gf
Release Force 5.099gf
Operating Position 0.268" (6.8mm)
Pretravel -
Differential Travel 0.020" (0.5mm)
Overtravel 0.022" (0.55mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 30,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2F
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1355149-D2F-L-A1
Ultra Librarian 3D Model Ultra Librarian D2F-L-A1 CAD Model

Description

The Omron Electronics Inc-EMC Div D2F limit switch is a reliable component used for detecting the presence or absence of an object in various applications. With a current rating of 3A (AC) and 2A (DC), this limit switch can handle a wide range of electrical loads. It operates in a temperature range from -40°C to 85°C, making it suitable for both indoor and outdoor applications.

  • Actuator Type: Lever
  • Termination Style: PC Pin
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 30,000 cycles
