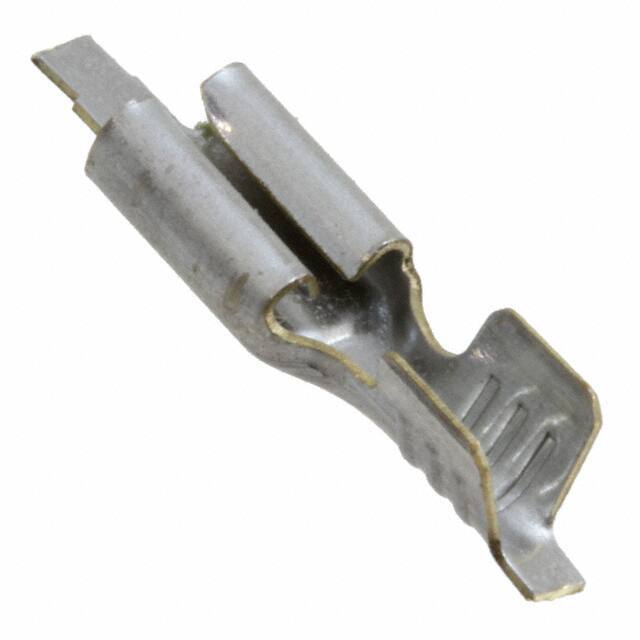

63560-1 TE Connectivity
Same model may have multiple batches, images only for reference.

63560-1

Part No 63560-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 16-20AWG 0.110 / 0.110" (2.79mm) Quick Connect Female 16-20 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.190" (4.83mm)
Length - Overall 0.415" (10.54mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter -
Base Product Number 63560
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1357140-63560-1
Ultra Librarian 3D Model Ultra Librarian 63560-1 CAD Model

Description

The Faston is a series of quick connect terminals from TE Connectivity AMP Connectors that are widely used in the electronics industry.

  • Terminal Gender: Female
  • Wire Gauge: 16-20 AWG
  • Termination: Crimp
  • Contact Finish: Tin
  • Insulation: Non-Insulated
  • Overall Length: 0.415 inches
  • Series: Faston
  • Packaging: Tape & Reel
  • MSL: 1 (Unlimited)
  • Product Status: Active
  • Category: Quick Disconnect Connectors
  • Base Product Number: 63560
  • HTSUS Code: 8536.90.4000
  • REACH Status: Vendor Undefined
  • ECCN: EAR99
