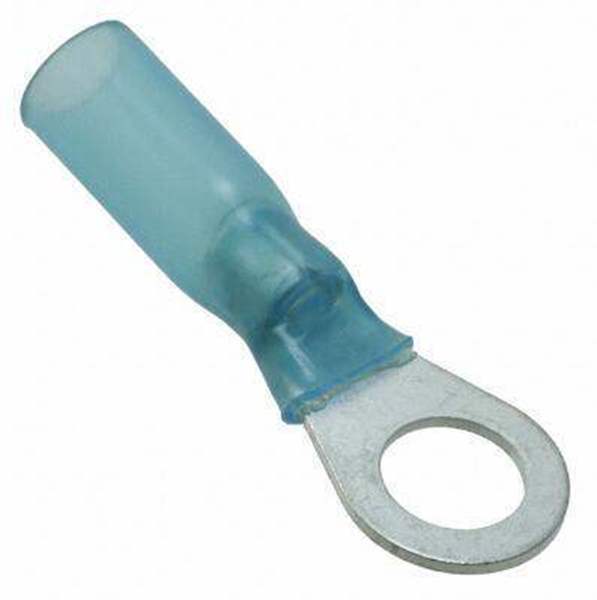

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity Aerospace, Defense and Marine
Category Connectors, Interconnects Terminals Ring Connectors
Package Bulk
Product Status Active
Terminal Type Circular
Width - Outer Edges 0.435" (11.05mm)
Length - Overall 1.440" (36.58mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Insulation Insulated with Heat Shrink
Contact Material Copper Alloy
Win Source Part Number WS1209685-596381-000
Ultra Librarian 3D Model Ultra Librarian 596381-000 CAD Model

Description

Ring Terminal Connector Circular 14-16 AWG Crimp
