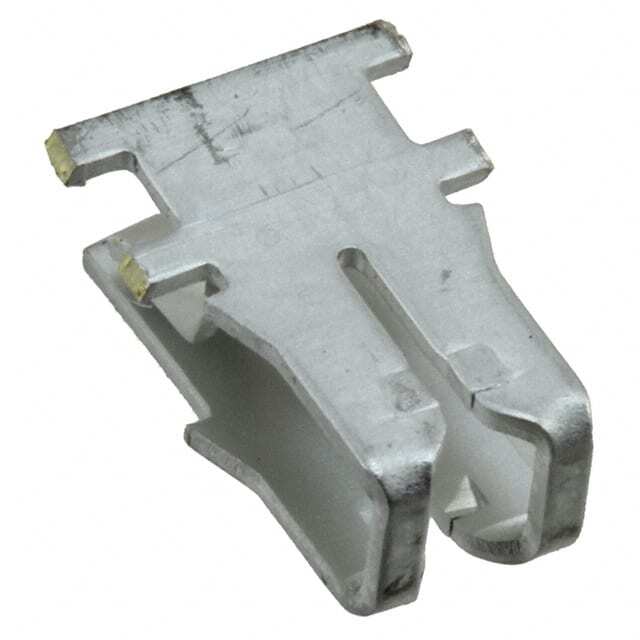

Part No 62420-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN MAG TERM 20-22AWG IDC / Terminal Magnetic Connector 300 20-22 AWG IDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Magnetic Wire Connectors
Mfr TE Connectivity
Series Mag-Mate
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Style 300
Terminal Type Poke-In Terminal
Size 2
Termination IDC
Wire Gauge 20-22 AWG
Features Locking
Base Product Number 62420
Standard Package 12,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 907663-62420-1
Ultra Librarian 3D Model Ultra Librarian 62420-1 CAD Model

Description

The 62420-1 is a magnetic wire connector terminal from TE Connectivity.

  • Series: Mag-Mate
  • Locking: Yes
  • Termination Style: IDC (Insulation Displacement Connection)
  • Wire Gauge: 20-22 AWG
  • Package Quantity: 12,000 pcs
  • Terminal Size: 2
  • Style: 300
  • ECCN: EAR99
  • MSL: 1
  • REACH Status: Vendor Undefined
  • HTSUS Code: 8536.90.4000
  • Base Product Number: 62420
  • Product Status: Active
