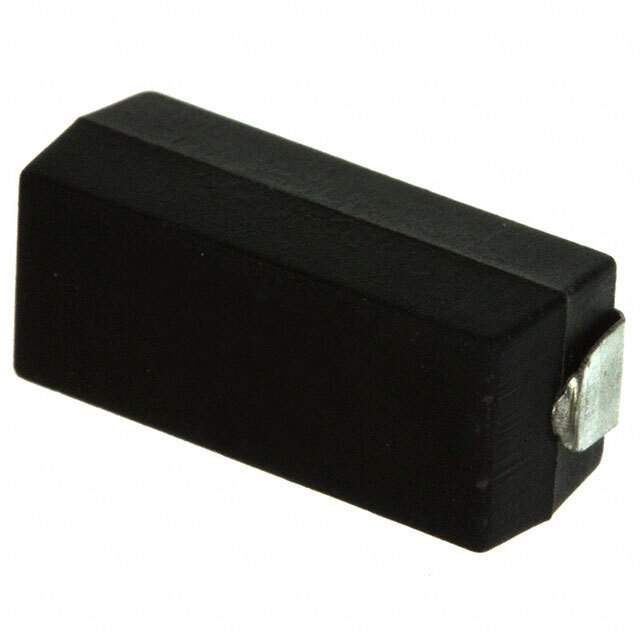

S3-0R2J8 Real Image
Same model may have multiple batches, images only for reference.

S3-0R2J8

Part No S3-0R2J8
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES 0.2 OHM 5% 3W 6327 / 200 mOhms ±5% 3W Chip Resistor 6327 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S3-0R2J8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 200 mOhms
Tolerance ±5%
Power (Watts) 3W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Range - Operating -55°C ~ 275°C
Package / Case 6327 J-Lead
Dimension 0.626" L x 0.272" W (15.90mm x 6.90mm)
Height - Seated (Max) 0.268" (6.80mm)
Number of Terminations 2
Other Names S-3 0.200 OHM 5%,S-3-0.200JTR,S-3-0.200JTR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237180-S3-0R2J8
Ultra Librarian 3D Model Ultra Librarian S3-0R2J8 CAD Model

Description

The Riedon 1237180-S3-0R2J8 is a wirewound chip resistor that belongs to the S series and has a resistance of 200 mOhms.

  • Resistance: 200 mOhms
  • Series: S series
  • Mounting Type: Surface Mount
  • Package / Case: 6327 J-Lead
  • Power Rating: 3W
  • Tolerance: ±5%
  • Features: Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
  • Package: Tape and Reel
  • Standard Package: 500
  • Height - Seated (Max): 0.268 inches
  • Temperature Range: -55°C to 275°C
  • Manufacturer: Riedon
