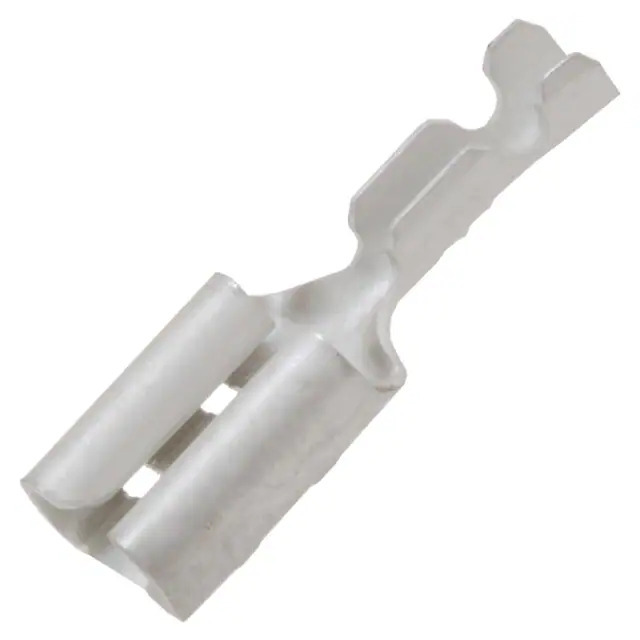

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.585" (14.86mm)
Termination Crimp
Wire Gauge 20-24 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.040" ~ 0.070" (1.02mm ~ 1.78mm)
Base Product Number 62181
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364827-62181-1
Ultra Librarian 3D Model Ultra Librarian 62181-1 CAD Model

Description

The Faston Quick Disconnect Connector is from TE Connectivity AMP Connectors and is a versatile and reliable component for your electronic projects.

  • Mounting Type: Free Hanging (In-Line)
  • Wire Gauge: 20-24 AWG
  • Contact Finish: Tin
  • Insulation: Non-Insulated
  • Overall Length: 0.585" (14.86mm)
  • Gender: Female
  • Tab Width: 0.187" (4.75mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Tab Length: 0.250" (6.35mm)
  • Insulation Diameter: 0.040" ~ 0.070" (1.02mm ~ 1.78mm)
