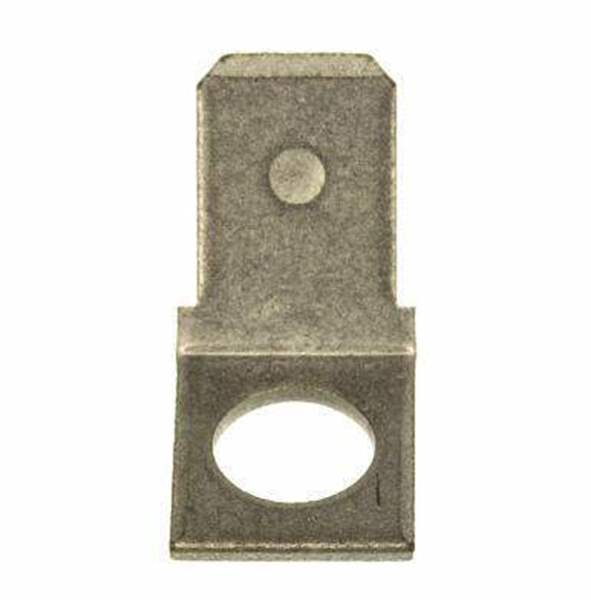

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Terminals Quick Connects, Quick Disconnect Connectors
Package Bulk
Product Status Active
Terminal Type Angled - 45°
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Termination Screw, Rivet, Stud
Insulation Non-Insulated
Mounting Type Board, Chassis
Contact Material Brass
Win Source Part Number WS1209809-61499-1
Ultra Librarian 3D Model Ultra Librarian 61499-1 CAD Model

Description

0.250" (6.35mm) Quick Connect Male Screw, Rivet, Stud Connector Non-Insulated
