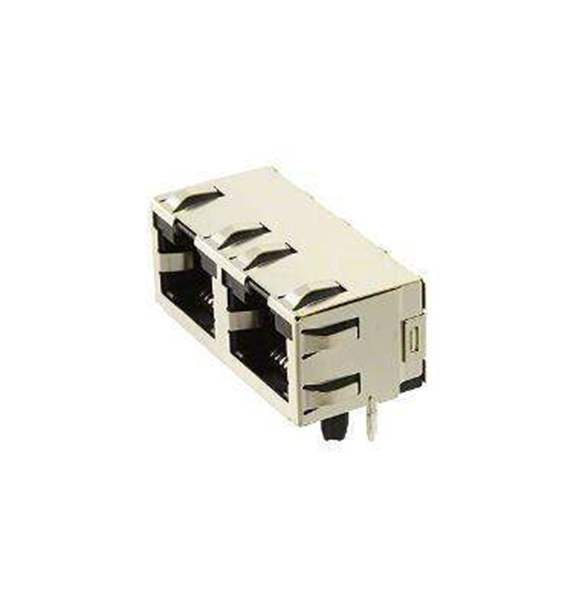

6116522-2TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Modular Connectors Modular Connector Jacks
Product Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Mounting Type Through Hole
Termination Solder
Orientation 90° Angle (Right)
Shielding Shielded, EMI Finger
Features Board Guide
Win Source Part Number WS1209770-6116522-2
Ultra Librarian 3D Model Ultra Librarian 6116522-2 CAD Model

Description

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5
