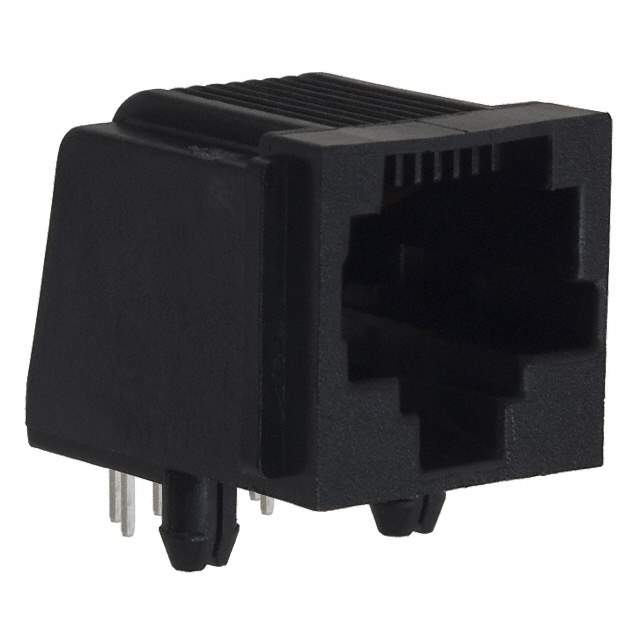

5520252-4 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Unshielded
Ratings Cat3
Features Board Lock, Keyed, Panel Stops
LED Color Does Not Contain LED
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Polybutylene Terephthalate (PBT), Polyester
Temperature Range - Operating -40°C ~ 85°C
Base Product Number 5520252
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-5520252-4,55202524,-5520252-4-SI,A31408
Standard Package 136
Win Source Part Number 1333861-5520252-4
Ultra Librarian 3D Model Ultra Librarian 5520252-4 CAD Model

Description

The TE Connectivity AMP Connectors 5520252-4 is a modular connector jack designed for use in a wide range of electronic applications.

  • Positions/Contacts: 8p8c (RJ45, Ethernet)
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C ~ 85°C
  • Rated: Cat3
  • Features: Board Lock, Keyed, Panel Stops
  • Shield: Unshielded
  • Contact Material: Phosphor Bronze
  • Housing Material: Polybutylene Terephthalate (PBT), Polyester
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Packaging: Tray
  • Standard Package: 136
