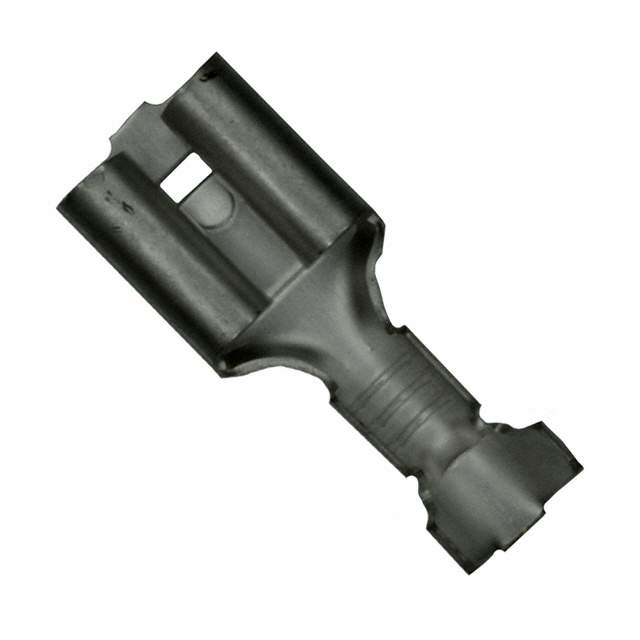

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.205" (5.21mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.616" (15.65mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.085" ~ 0.125" (2.16mm ~ 3.18mm)
Base Product Number 60904
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A27691TR,60904-2-ND,-60904-2-SI,A27691-ND,609042,A27691CT,A27691
Standard Package 20,000
Win Source Part Number 1333684-60904-2
Ultra Librarian 3D Model Ultra Librarian 60904-2 CAD Model

Description

This female quick connect terminal is a reliable and efficient solution for connecting wires in a variety of applications.

  • Termination: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 18-22 AWG
  • Contact Material: Brass
  • Insulation: Non-Insulated
  • Terminal Type: Standard
  • Overall Length: 0.616 inches (15.65mm)
  • Tab Width: 0.205 inches (5.21mm)
  • Tab Thickness: 0.032 inches (0.81mm)
  • Tab Length: 0.250 inches (6.35mm)
  • Insulation Diameter: 0.085 inches to 0.125 inches (2.16mm to 3.18mm)
  • Standard Package: 20,000
  • Mounting: Free Hanging (In-Line)
  • RoHS3 Standards: Yes
  • ECCN: EAR99
