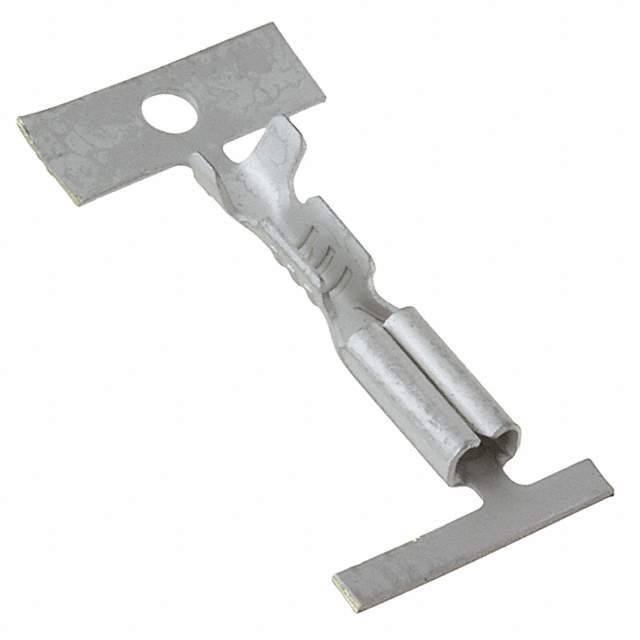

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.062" (1.57mm)
Tab Thickness 0.031" (0.79mm)
Tab Length 0.187" (4.75mm)
Length - Overall 0.462" (11.73mm)
Termination Crimp
Wire Gauge 22 AWG, 24 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.040" ~ 0.080" (1.02mm ~ 2.03mm)
Base Product Number 60900
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A105484CT,609004,A105484TR,-60900-4-SI,60900-4-ND,2266-60900-4
Standard Package 50,000
Win Source Part Number 1333484-60900-4
Ultra Librarian 3D Model Ultra Librarian 60900-4 CAD Model

Description

The 1333484-60900-4 is a female quick disconnect connector that is crimped onto wires with a wire gauge of 22 AWG or 24 AWG.

  • Contact Finish: tin
  • Contact Material: brass
  • Overall Length: 0.462 inches (11.73mm)
  • Tab Width: 0.062 inches (1.57mm)
  • Tab Thickness: 0.031 inches (0.79mm)
  • Tab Length: 0.187 inches (4.75mm)
  • Insulation Diameter: 0.040 inches to 0.080 inches (1.02mm to 2.03mm)
  • Insulation: non-insulated
  • Mounting: free-hanging (in-line)
